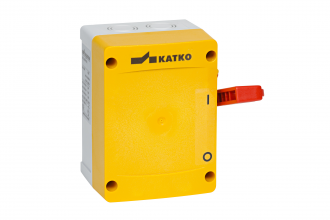

KE Side Operated Switches Polycarbonate Enclosed 16-40A

KATKO KE side operated polycarbonate enclosed 25-63A safety switches are the perfect choice for domestic applications. The side operated polycarbonate enclosures are available in grey/black, yellow/red or fireman red. Resistant against UV and many chemicals the KE and KEF side operated switch can withstand high impact and a varied temperature range.

Further information

Type AC-21 400 V AC-22 400 V AC-23 AC-23 EAN-Code Enclosure
415 V 415 V 400 V 690 V
690 V 690 V 415 V
Grey/black Yellow/red Ie / A Ie / A Ie / A Ie / A Grey/black Yellow/red
3-pole
KE 316M KE 316M Y/R 25 A 16 A 16 A 7.5 kW 16 A 11 kW 6419410304006 6419410304129 U2
KE 325M KE 325M Y/R 40 A 25 A 25 A 11 kW 25 A 22 kW 6419410304013 6419410304136 U2
KE 340M KE 340M Y/R 63 A 40 A 40 A 22 kW 32 A 30 kW 6419410304020 6419410304143 U2
4-pole
KE 416M KE 416M Y/R 25 A 16 A 16 A 7.5 kW 16 A 11 kW 6419410304037 6419410304150 U2
KE 425M KE 425M Y/R 40 A 25 A 25 A 11 kW 25 A 22 kW 6419410304044 6419410304167 U2
KE 440M KE 440M Y/R 63 A 40 A 40 A 22 kW 32 A 30 kW 6419410304051 6419410304174 U2
KATKO Side Operated Switches Polycarbonate Enclosed

Key benefits

  • Available in grey/black, yellow/red or fireman red

  • Good resistance against UV and many chemicals

  • Self-extinguishing material and excellent insulating properties

  • Fully rated Load Break Switch breaking capacity of 8 x AC23 rating

  • Cable entries 2 x M20/M25 as standard on the top and bottom and M20 on the base

  • Mounting holes: 118,0 x 84,0

  • Padlockable handle in 0-position and also available in 1-position

  • Knock-out glands are easy to open

  • Large cable terminals 1,5 - 16 mm 2

  • Tested according to IEC 60947-3
