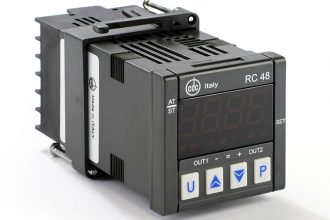

RC48 digital electronic thermoregulator “single loop” with a keyboard to set the various parameters.

Document downloads

Further information

The instrument is equipped with a 3 LED programmable shift indexes and it have got 2 relay outputs.

Depending on the model required the input accept:

  • C: Thermocouples temperature probes (J,K,S ) mV signals (0..50/60 mV, 12..60 mV), Thermoresistances PT100.
  • E: Thermocouples temperature probes (J,K,S), Mv signals (0..50/60 mV, 12..60 mV), Thermistors PTC(990 Ω @ 25°C ) and NTC (10K Ω @ 25°C ).
rc48

Key benefits

  • The wide digits display makes the instrument visible from a large distance. On the instrument is possible to set: 2 set-points, ON/ OFF, Neutral Zone ON/OFF, PID single action, PID dual action (direct and reverse) control and with AUTO-TUNING FAST function
