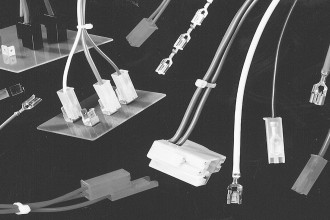

Originally designed to meet the requirements of automotive production, the Positive Lock Connection System finds applications in any product where strong vibration and mechanical strain are present. The contact can be mated easily, simultaneously creating a good mechanical locking force. The contact will not separate by a pull on the wire. When the receptacle housing is pulled deliberately, an internal ramp designed into the housing engages with the spring member, depressing it, thus releasing the lock. The tabs must be in accordance with DIN 46244.
Reduced insertion force
Adaptable to multiple position housings
Easily simultaneous mating
Ease of assembly and secure retention to mating tabs
Unique features are attainable by the reduced insertion force of the product and the locking dimple
