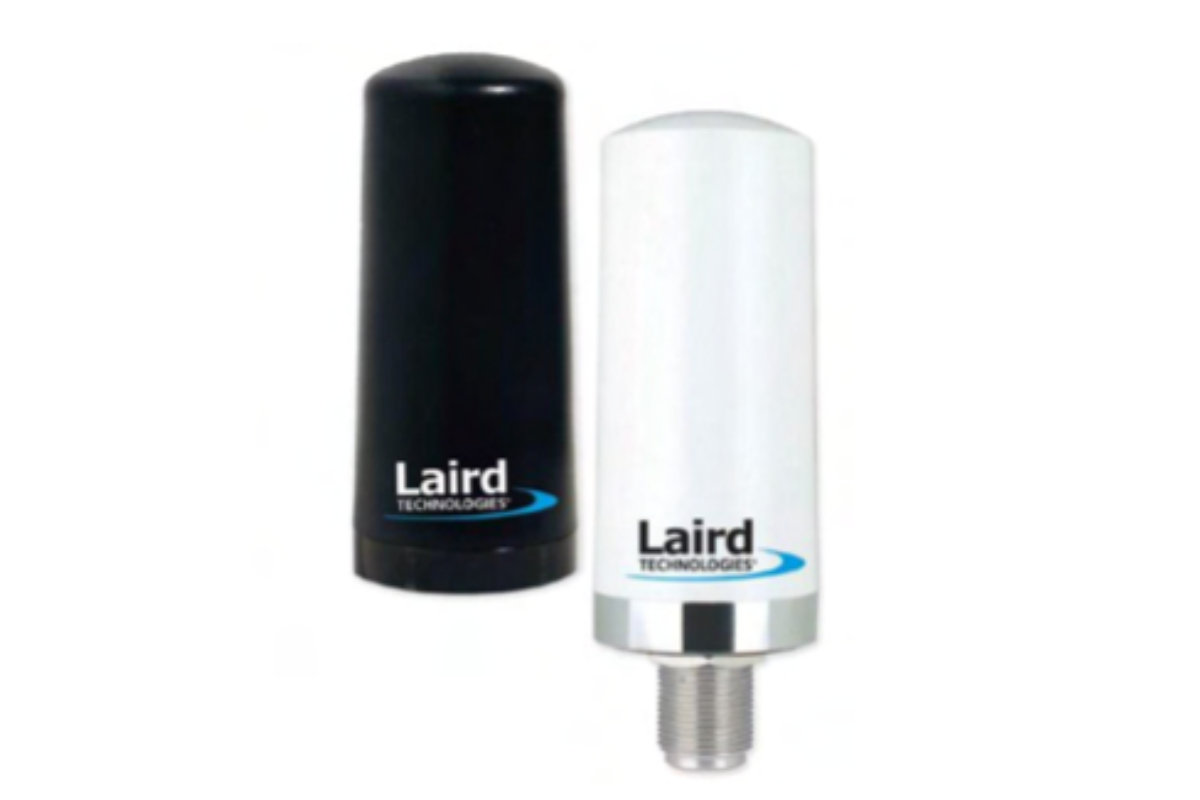

Phantom Series Antennas

Single and multi-band Phantom antennas are known industry-wide for their IP67 enclosure, rugged construction and excellent performance. They’re the antenna of choice in many public safety, transportation and aftermarket fleet applications. The antenna integrates SISO solutions for UHF, Cellular LTE and Wi-Fi into a low profile housing.

Further information

TE Connectivity Phantom Series Antenna Brochure

Part Number Frequency (MHz) VSWR Peak Gain (dBi) Mounting Colour
TRA(B)18503 1850-1990 <2.0:1 3.0 NMO (or P = Permanent [stud]) B – Black

No B – White

TRA(B)24/49003(P) 2400-2500/4900-5850 <2.0:1 5.7 NMO (or P = Permanent [stud])
TRA(B)24003 2400-2500 <2.0:1 3.0 NMO
TRAB3803P 380-400 <2.0:1 0.0 Permanent (Stud)
TRA(B)4103(P) 410-430 <2.0:1 3.0 NMO (or P = Permanent [stud])
TRA(B)4303(P) 430-450 <2.0:1 3.0 NMO (or P = Permanent [stud])
TRA(B)4503(P) 450-470 <2.0:1 3.0 NMO (or P = Permanent [stud])
TRA(B)4703 470-490 <2.0:1 3.0 NMO (or P = Permanent [stud])
TRA58003(P) 4900-6000 <2.0:1 3.0 NMO (or P = Permanent [stud])
TRA(B)7603 760-870 <2.0:1 3.0 NMO
TRA(B)806/17103(P) 806-960/1575.42/1710-2500 <2.0:1 5.9/5.1/4.4 NMO (or P = Permanent [stud])
TRA(B)8063 806-870 <2.0:1 3.0 NMO
TRA(B)821/18503(P) 821-896/1850-1990 <2.0:1 3.0/3.0 NMO (or P = Permanent [stud])
TRA(B)8213(P) 821-896 <2.0:1 3.0 NMO (or P = Permanent [stud])
TRA(B)8903(P) 890-960 <2.0:1 3.0 NMO (or P = Permanent [stud])
TRA(B)9023(P) 902 – 928 <2.0:1 0.0 NMO (or P = Permanent [stud])
TRA6927M3xx-003 (No Logo) 698-960/1710-2700 <2.5:1 3.5/5.5 N – NMO, P – Permanent B – Black

W – White

TRA6927M3xx-001 698-960/1710-2700 <2.5:1 3.5/5.5 N – NMO, P – Permanent
TRA6927M3Px-002 698-960/1710-2700 <2.5:1 3.5/5.5 Permanent (Extended Stud)
TRA8063M3xx-001 806-896/1850-1990/2500-2700 <2.0:1 4.0/3.5/3.0 N – NMO, P – Permanent
