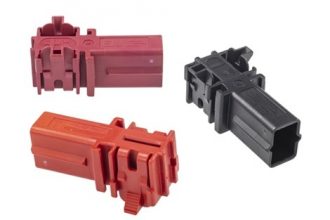

One Position 90° Unsealed Connectors Using PCON 12 Terminals is a unique power connection solution suitable for a variety of applications across the ICT market. It offers a one-position, unsealed power connection with positive and negative markings on each connector. Its 90° terminal orientation makes it ideal for establishing power connections in extremely cramped in-cabin spaces.
TE Connectivity’s one position 90° unsealed connectors using PCON 12 terminals is the newest addition to our extensive product portfolio of unsealed connectors for in-cabin applications. Made out of flame-retardant, UL94 V-0 rated material, this connector is an excellent solution for supporting in-cabin power applications with a current-carrying capability of up to 60 amps at 90° C.
Thanks to its 90° cable exit configuration, it can be used in extremely tight spaces inside the vehicle’s cabin and with new designs. The one position 90° unsealed connectors using PCON 12 terminals can accept wire sizes up to 16 square millimetres to allow establishing high power connections.
The connector offers 3-polarization key mating configurations, which prevent polarity mismatches, as well as dual, side-actuated snap-in locking features, which provide an audible “click” for an added layer of security.
Made out of flame-retardant UL 94 V-0 material
90° terminal orientation and dual housing slots allows for easier connection and removal
3 colour codings
Cost Efficient
