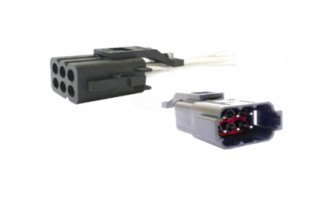

NGC Connector

The TE Connectivity NGC signal connectors are available in 4 arrangements, 4,6,12 and 28 silver or gold plated 1.6mm contacts. With an IP 66 mated protection index the NGC is a filed proven connector, offering a compact and cost-effective solution.

Further information

Deutsch NGC Signal Connector

The NGC Series is a compact & cost-effective solution for all non-secure connections for wire to wire applications. From 4 to 28 poles, it will answer your fast connection needs with high-level protection (IP66) and up to 500 volts (EN 50124-1/A2) applications. NGC offers cable capacity of up to 2.85mm2 for AWG16 contacts.



NGC Applications

NGC Functions

NGC Standards

  • Train Control
  • PIS & Safety
  • Sub systems















  • Cab control
  • Train control
  • Air conditioning
  • Doors
  • Lighting











  • NFF 61030
  • EN 45545
  • DIN 5510
  • UNICEI 11170
  • UL94











NGC connectors

Key benefits

  • Monobloc signal connector in 100% composite, Clip Locking System

  • Cable cross-sections: 0,5 to 2,5 mm

  • Temperature range: -40ºC, +100ºC

  • Rated current: up to 20A

  • High level of performance

  • Vibrations and shocks: category 1 class B according to EN 61373

  • Service voltage: 500 V AC/DC according to EN 50124-1/A2 (OV3-PD2)
