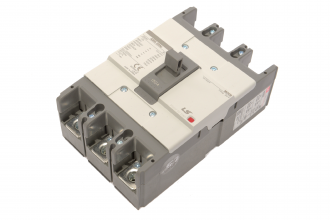

Susol circuit breakers provide superior performance in a compact package. They are used in cascade rated systems, allowing the use of lower interruption circuit breakers downstream, which lead to lower system cost. While meeting IEC60947-2 service and interrupting ratings, these breakers provide unmatched flexibility by employing a wide variety of trip units including fixed thermal & magnetic, adjustable thermal-fixed magnetic, adjustable thermal adjustable magnetic, and electronic options.
Are available in the fixed version and plug-in versions
The breaking capacities, at 380/415V, are classified by following letters: S: 37kA for 100 and 160AF N: 50kA for 160, 250 and 1600AF 65kA for 630 and 800AF H: 75kA for 1600AF 85kA for 160, 250 and 630AF 100kA for 800AF L: 150kA for 160, 250, 630, 800 and 1600AF
Available in four frame sizes : 160, 250, 630, 800, 1600AF
A range of service currents up to 1600A
Susol circuit-breakers are climate-proof
Suitable for isolation in compliance with standards IEC 60947-1 and 2
All Susol circuit breakers offer positive contact indication
Susol circuit-breakers are suitable for protection of - Power distribution systems supplied by transformers or generators - Motor and generator
