EVA Load Break Switches 80A-250A Toggle Switches

Load break switches 80A-250A EVA series toggle switches, disconnects equipment from its power source for maintenance, repair and emergency stops. Available in A 3 pole 160-200A switch or a 3 or 4 pole 200-250A switch with optional terminal covers and phase barriers.

Buy online

Dalroad Shop

Further information

Type AC-21 400 V AC-22 400 V AC-23 EAN-Code
415 V 415 V 400 V
690 V 690 V 415 V
Model Ie / A Ie / A Ie / A
EVA 3125+K/EVA 160 A 80 A 45 kW 6419410202517
EVA 3160+K/EVA 200 A 160 A 105 A 55 kW 6419410203019
EVA 3125+K/EVA R 160 A 80 A 45 kW 6419410202524
EVA 3160+K/EVA R 200 A 160 A 105 A 55 kW 6419410203026
EVA 3125+K/EVA Y/R 160 A 80 A 45 kW 6419410202531
EVA 3125+K/EVA Y/R 200 A 160 A 105 A 55 kW 6419410203033



Type AC-21 400 V AC-22 400 V AC-23 EAN-Code
415 V 415 V 400 V
690 V 690 V 415 V
Model Ie / A Ie / A Ie / A
3-pole
EVA 3200 200 A 200 A 160 A 75 kW 6419410203156
EVA 3250 250 A 250 A 200 A 90 kW 6419410203200
EVA 3200 R 200 A 200 A 160 A 75 kW 6419410203163
EVA 3250 R 250 A 250 A 200 A 90 kW 6419410203217

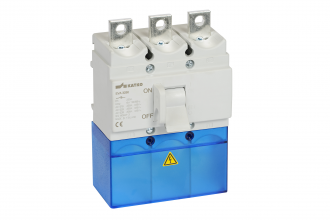

EVA 3200 LS/VS 200 A 200 A 160 A 75 kW 6419410203170
EVA 3250 LS/VS 250 A 250 A 200 A 90 kW 6419410203224
EVA 3200 R LS/VS 200 A 200 A 160 A 75 kW 6419410203187
EVA 3250 R LS/VS 250 A 250 A 200 A 90 kW 6419410203321
4-pole
EVA 4200 200 A 200 A 160 A 75 kW 6419410203262
EVA 4250 250 A 250 A 200 A 90 kW 6419410203309
EVA 4200 R 200 A 200 A 160 A 75 kW 6419410203279
EVA 4250 R 250 A 250 A 200 A 90 kW 6419410203316
EVA 4200 LS/VS 200 A 200 A 160 A 75 kW 6419410203286
EVA 4250 LS/VS 250 A 250 A 200 A 90 kW 6419410203323
EVA 4200 R LS/VS 200 A 200 A 160 A 75 kW 6419410203293
EVA 4250 R LS/VS 250 A 250 A 200 A 90 kW 6419410203330
KATKO Load Break Toggle Switches

Key benefits

  • Compact size

  • Switch technology by means of silver contacts ensures a long life expectancy and safe use in demanding conditions

  • 160-200 A:

  • Available with yellow front plate and red toggle (Y/R)

  • 200-250 A:

  • 3-pole and 4-pole

  • Available with terminal covers and phase barriers (LS/VS)

  • Available with red toggle (R)

  • Tested according to IEC 60947-3
