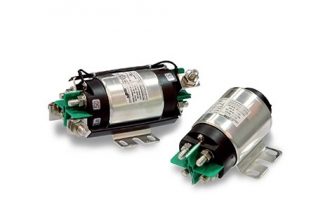

Kissling Series 29

The sealing technology used in the Kissling series 29 relays meets or exceeds both the IP67 and IP6K9K (Steam pressure cleaning) protection standard. This single coil system relay features high shock and vibration resistance resulting from careful design and an optimized magnetic circuit.

Document downloads

Further information

The Kissling 29 Series relay is well suited for various applications in severe conditions on commercial vehicles, buses, construction & agricultural vehicles, aircraft, ground support equipment and lift trucks.

Other important advantages are low heat generation in the contact area based on low contact voltage drop, a compact design, low holding current, silver alloy contact material and the use of mechanical and high thermal stability insulating compounds. Both the terminals and housing are protected against corrosion.

The series 29 includes power relays in nominal voltages of 12 & 24 V and nominal continuous amperages of from 75 Amps to 500 Amps.  The relays are available with a wide variety of configuration options including contact configurations (NO; NC; NO/NC) and coil voltages (12 V, 24 V, 36 V, 48 V, 60 V, 72 V and 80 V), as well as four bracket styles to enable solutions for various installation conditions, optional suppression devices to eliminate electromagnetic interference at the coil and optional auxiliary contacts.

Kisslingseries

Key benefits

  • Rated for minimum 100,000 switching cycles under full load

  • Rated for -40°C to +85°C environmental operating temperature
