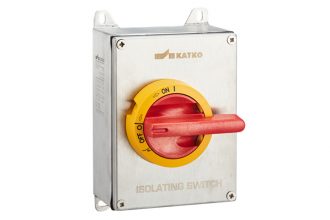

KATKO’s AISI 316 stainless steel enclosed IP69K safety switches are protected against close-range high pressure, high-temperature spray downs. Available in 2 different enclosure sizes and with 3, 4, 6 or 8 poles. 3 and 4 poles up to 125 A and 6 and 8 poles up to 80 A.
| Type | AC-22 | 400 V | AC-23 | 400 V | AC-23 | 690 V | EAN code | Enclosure | ||
| 415 V | 415 V | |||||||||
| G/B | Y/R | 690 V | G/B | Y/R | ||||||
| 3 poles | ||||||||||
| KER 316 IP69K | KER 316 Y/R IP69K | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410325919 | 6419410326152 | H23 | |
| KER 325 IP69K | KER 325 Y/R IP69K | 25 A | 25 A | 11 kW | 25 A | 22kW | 6419410325926 | 6419410326169 | H23 | |
| KER 340 IP69K | KER 340 Y/R IP69K | 40 A | 40 A | 22 kW | 32 A | 30kW | 6419410325933 | 6419410326176 | H23 | |
| KER 363 IP69K | KER 363 Y/R IP69K | 63 A | 40 A | 22 kW | 40 A | 37kW | 6419410325940 | 6419410326183 | H32 | |
| KER 380 IP69K | KER 380 Y/R IP69K | 80 A | 63 A | 30 kW | 40 A | 37kW | 6419410325957 | 6419410326190 | H32 | |
| KER 3100 IP69K | KER 3100 Y/R IP69K | 100 A | 80 A | 45 kW | 63 A | 55kW | 6419410325964 | 6419410326206 | H32 | |
| KER 3125 IP69K | KER 3125 Y/R IP69K | 125 A | 125 A | 55 kW | 80 A | 75kW | 6419410325971 | 6419410326213 | H32 | |
| 4 poles | ||||||||||
| KER 416 IP69K | KER 416 Y/R IP69K | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410325988 | 6419410326220 | H23 | |
| KER 425 IP69K | KER 425 Y/R IP69K | 25 A | 25 A | 11 kW | 25 A | 22kW | 6419410325995 | 6419410326237 | H23 | |
| KER 440 IP69K | KER 440 Y/R IP69K | 40 A | 40 A | 22 kW | 32 A | 30kW | 6419410326008 | 6419410326244 | H23 | |
| KER 440 IP69K | KER 440 Y/R IP69K | 63 A | 40 A | 22 kW | 40 A | 37kW | 6419410326015 | 6419410326251 | H32 | |
| KER 480 IP69K | KER 480 Y/R IP69K | 80 A | 63 A | 30 kW | 40 A | 37kW | 6419410326022 | 6419410326268 | H32 | |
| KER 4100 IP69K | KER 4100 Y/R IP69K | 100 A | 80 A | 45 kW | 63 A | 55kW | 6419410326039 | 6419410326275 | H32 | |
| KER 4125 IP69K | KER 4125 Y/R IP69K | 125 A | 125 A | 55 kW | 80 A | 75kW | 6419410326046 | 6419410326282 | H32 | |
| 6 poles | ||||||||||
| KER 616 IP69K | KER 616 Y/R IP69K | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410326053 | 6419410326299 | H32 | |
| KER 625 IP69K | KER 625 Y/R IP69K | 25 A | 25 A | 11 kW | 25 A | 22kW | 6419410326060 | 6419410326305 | H32 | |
| KER 640 IP69K | KER 640 Y/R IP69K | 40 A | 32 A | 22 kW | 32 A | 30kW | 6419410326077 | 6419410326312 | H32 | |
| KER 663 IP69K | KER 663 Y/R IP69K | 63 A | 40 A | 22 kW | 40 A | 37kW | 6419410326084 | 6419410326329 | H32 | |
| KER 680 IP69K | KER 680 Y/R IP69K | 80 A | 40 A | 30 kW | 40 A | 37kW | 6419410326091 | 6419410326336 | H32 | |
| 8 poles | ||||||||||
| KER 816 IP69K | KER 816 Y/R IP69K | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410326107 | 6419410326343 | H32 | |
| KER 825 IP69K | KER 825 I Y/R IP69K | 25 A | 25 A | 11 kW | 25 A | 22kW | 6419410326114 | 6419410326350 | H32 | |
| KER 840 IP69K | KER 840 Y/R IP69K | 40 A | 40 A | 22 kW | 32 A | 30kW | 6419410326121 | 6419410326367 | H32 | |
| KER 863 IP69K | KER 863 Y/R IP69K | 63 A | 40 A | 22 kW | 40 A | 37kW | 6419410326138 | 6419410326374 | H32 | |
| KER 880 IP69K | KER 880 Y/R IP69K | 80 A | 63 A | 30 kW | 40 A | 37kW | 6419410326145 | 6419410326381 | H32 | |
IP69K/IP69 rating
AISI 316
Padlockable
