KU Load Break Switches 100-160A

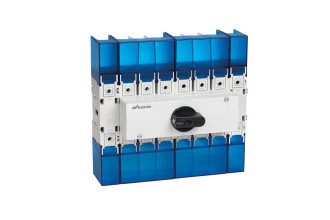

The KATKO KU 160A Load Break Switch offers a complete modular solution. It allows seamless installation according to the most demanding user configurations. Available in 3, 4, 6 and 8 pole; AC21 63-100A, AC23 100-200A

Further information

Type AC-21 400 V AC-22 400 V AC-23 AC-23 EAN-Code
415 V 415 V 400 V 690 V
690 V 690 V 415 V
3 poles 6 poles Ie / A Ie / A Ie / A Ie / A Grey/black Yellow/red
KU 3100 KU 6100 125 A 100 A 100 A 55 kW 63 A 55 kW 6419410203484 6419410203521
KU 3125 KU 6125 160 A 125 A 125 A 55 kW 80 A 75 kW 6419410203491 6419410203538
KU 3160 KU 6160 160 A 160 A 160 A 90 kW 100 A 90 kW 6419410203507 6419410203545
KU 3100 CO* – 125 A 100 A 100 A 55 kW 63 A 55 kW 6419410203583 –
KU 3125 CO* – 160 A 125 A 125 A 55 kW 80 A 75 kW 6419410203590 –
KU 3160 CO* – 160 A 160 A 160 A 90 kW 100 A 90 kW 6419410203606 –
4 poles 8 poles
KU 4100 KU 8100 125 A 100 A 100 A 55 kW 63 A 55 kW 6419410203675 6419410203552
KU 4125 KU 8125 160 A 125 A 125 A 55 kW 80 A 75 kW 6419410203682 6419410203569
KU 4160 KU 8160 160 A 160 A 160 A 90 kW 100 A 90 kW 6419410203514 6419410203576
KU 4100 CO* – 125 A 100 A 100 A 55 kW 63 A 55 kW 6419410203613 –
KU 4125 CO* – 160 A 125 A 125 A 55 kW 80 A 75 kW 6419410203620 –
KU 4160 CO* – 160 A 160 A 160 A 90 kW 100 A 90 kW 6419410203637 –

Key benefits

  • Lockable to off-position

  • Modular design

  • Easy configuration of multiple solutions

  • Switching speed is independent of the operator

  • Silver contacts ensure safe and durable operation
