ATEX Switches | KATKO KEA / KER ATEX Isolator | 16-200A

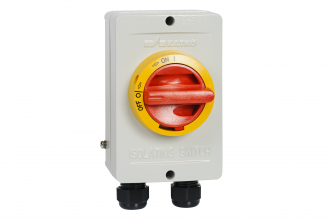

ATEX approved 16-200A switches, the KEA and KER IP66 safety switches / isolators are suitable for use in hazardous area; Zone 22 (Category 3D). Easy to install, the ATEX KEA switches are tested according to IEC 60947-3 standards and conform to EN 61241. The ATEX safety switches are available in aluminium and stainless steel and are padlockable with three locks.

Document downloads

Drawing downloads

3D Models

Further information

ATEX Isolator IK Ratings

KEA 10-40A in A2 enclosure: IK08

KEA 63-160A in A3 enclosure: IK08

KER 10-125A in H23, H32 enclosures: IK08

KER 160A and higher: IK08

Type	AC-21	400 V	AC-22	400 V	AC-23		AC-23		EAN-Code	Enclosure
		415 V		415 V		400 V		690 V
		690 V		690 V		415 V
Model	Ie / A		Ie / A		Ie / A		Ie / A
Aluminium 3-Pole
KEA 316U EX	25 A		16 A		16 A	7.5 kW	16 A	11 kW	6419410305508	A2EX
KEA 325U EX	40 A		25 A		25 A	11 kW	25 A	22 kW	6419410305515	A2EX
KEA 340U EX	63 A		40 A		40 A	22 kW	32 A	30 kW	6419410305522	A2EX
KEA 363U EX	80 A		63 A		40 A	22 kW	40 A	37 kW	6419410305560	A3EX
KEA 380U EX	100 A		80 A		63 A	30 kW	40 A	37 kW	6419410305577	A3EX
KEA 3100U EX	125 A		100 A		100 A	55 kW	63 A	55 kW	6419410315422	A3EX
KEA 3125U EX	160 A		125 A		125 A	55 kW	80 A	75 kW	6419410305584	A3EX
KEA 3160U EX	160 A		160 A		160 A	90 kW	100 A	90 kW	6419410305591	A3EX
Aluminium 4-Pole
KEA 416U EX	25 A		16 A		16 A	7.5 kW	16 A	11 kW	6419410305539	A2EX
KEA 425U EX	40 A		25 A		2 5A	11 kW	25 A	22 kW	6419410305546	A2EX
KEA 440U EX	63 A		40 A		40 A	22 kW	32 A	30 kW	6419410305553	A2EX
KEA 463U EX	80 A		63 A		40 A	22 kW	40 A	37 kW	6419410305607	A3EX
KEA 480U EX	100 A		80 A		63 A	30 kW	40 A	37 kW	6419410305614	A3EX
KEA 4100U EX	125 A		100 A		100 A	55 kW	63 A	55 kW	6419410315439	A3EX
KEA 4125U EX	160 A		125 A		125 A	55 kW	80 A	75 kW	6419410305621	A3EX
KEA 4160U EX	160 A		160 A		160 A	90 kW	100 A	90 kW	6419410305638	A3EX
Aluminium 6-Pole
KEA 616U EX	25 A		16 A		16 A	7.5 kW	16 A	11 kW	6419410306208	A3EX
KEA 625U EX	40 A		25 A		2 5A	11 kW	25 A	22 kW	6419410306215	A3EX
KEA 640U EX	63 A		40 A		40 A	22 kW	32 A	30 kW	6419410306222	A3EX
KEA 663U EX	80 A		63 A		40 A	22 kW	40 A	37 kW	6419410306239	A3EX
KEA 680U EX	100 A		80 A		63 A	30 kW	40 A	37 kW	6419410306246	A3EX
Aluminium 8-Pole
KEA 816U EX	25 A		16 A		16 A	7.5 kW	16 A	11 kW	6419410306253	A3EX
KEA 825U EX	40 A		25 A		2 5A	11 kW	25 A	22 kW	6419410306260	A3EX
KEA 840U EX	63 A		40 A		40 A	22 kW	32 A	30 kW	6419410306277	A3EX
KEA 863U EX	80 A		63 A		40 A	22 kW	40 A	37 kW	6419410306284	A3EX
KEA 880U EX	100 A		80 A		63 A	30 kW	40 A	37 kW	6419410306291	A3EX
Stainless steel 3-Pole
KER 316 EX	25 A		16 A		16 A	7.5 kW	16 A	11 kW	6419410305645	H23EX
KER 325 EX	40 A		25 A		2 5A	11 kW	25 A	22 kW	6419410305652	H23EX
KER 340 EX	63 A		40 A		40 A	22 kW	32 A	30 kW	6419410305669	H23EX
KER 363 EX	80 A		63 A		40 A	22 kW	40 A	37 kW	6419410305706	H32EX
KER 380 EX	100 A		80 A		63 A	30 kW	40 A	37 kW	6419410305713	H32EX
KER 3100 EX	125 A		100 A		100 A	55 kW	63 A	55 kW	6419410315446	H02EX
KER 3125 EX	160 A		125 A		125 A	55 kW	80 A	75 kW	6419410305720	H02EX
KER 3160 EX	160 A		160 A		160 A	90 kW	100 A	90 kW	6419410305737	H02EX
Stainless steel 4-Pole
KER 416 EX	25 A		16 A		16 A	7.5 kW	16 A	11 kW	6419410305676	H23EX
KER 425 EX	40 A		25 A		2 5A	11 kW	25 A	22 kW	6419410305683	H23EX
KER 440 EX	63 A		40 A		40 A	22 kW	32 A	30 kW	6419410305690	H23EX
KER 463 EX	80 A		63 A		40 A	22 kW	40 A	37 kW	6419410305744	H32EX
KER 480 EX	100 A		80 A		63 A	30 kW	40 A	37 kW	6419410305751	H32EX
KER 4100 EX	125 A		100 A		100 A	55 kW	63 A	55 kW	6419410315453	H02EX
KER 4125 EX	160 A		125 A		125 A	55 kW	80 A	75 kW	6419410305768	H02EX
KER 4160 EX	160 A		160 A		160 A	90 kW	100 A	90 kW	6419410305775	H02EX
Stainless steel 6-Pole
KER 616 EX	25 A		16 A		16 A	7.5 kW	16 A	11 kW	6419410306406	H32EX
KER 625 EX	40 A		25 A		2 5A	11 kW	25 A	22 kW	6419410306413	H32EX
KER 640 EX	63 A		40 A		40 A	22 kW	32 A	30 kW	6419410306420	H32EX
KER 663 EX	80 A		63 A		40 A	22 kW	40 A	37 kW	6419410306437	H32EX
KER 680 EX	100 A		80 A		63 A	30 kW	40 A	37 kW	6419410306444	H32EX
KER 6100 EX	125 A		100 A		100 A	55 kW	63 A	55 kW	6419410315460	H02EX
KER 6125 EX	160 A		125 A		125 A	55 kW	80 A	75 kW	6419410306505	H02EX
KER 6160 EX	160 A		160 A		160 A	90 kW	100 A	90 kW	6419410306512	H02EX
Stainless steel 8-Pole
KER 816 EX	25 A		16 A		16 A	7.5 kW	16 A	11 kW	6419410306451	H32EX
KER 825 EX	40 A		25 A		2 5A	11 kW	25 A	22 kW	6419410306468	H32EX
KER 840 EX	63 A		40 A		40 A	22 kW	32 A	30 kW	6419410306475	H32EX
KER 863 EX	80 A		63 A		40 A	22 kW	40 A	37 kW	6419410306482	H32EX
KER 880 EX	100 A		80 A		63 A	30 kW	40 A	37 kW	6419410306499	H32EX
KER 8100 EX	125 A		100 A		100 A	55 kW	63 A	55 kW	6419410315477	H02EX
KER 8125 EX	160 A		125 A		125 A	55 kW	80 A	75 kW	6419410306529	H02EX
KER 8160 EX	160 A		160 A		160 A	90 kW	100 A	90 kW	6419410306536	H02EX

Key benefits

Conforming to Directive 2014/34/EU, EN 60079-0 (2012), EN 60079-31 (2014)
Suitable for use in Zone 22 (Category 3D)
IP66
Frontal impact test of 7 Joules
Temperature range from -20 °C to +40°C
Available in aluminium and stainless steel
Padlockable with three locks
Door interlock with defeat mechanism
Separate ATEX-enclosures upon request
ATEX cable glands included
Tested according to IEC 60947-3
