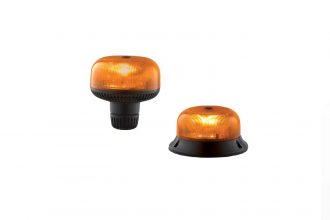

Jokon Crystal and Crystal 2.0 Beacon

The rotating and flashing beacons Crystal and Crystal 2.0 (according to ECE R65 Class 2) is reliable in under harsh conditions. Timer control (for Flashing Beacon with flashing effect 2F/4F according to ECE-R65) and is designed with a high-precision inner reflective lens (PMMA) for 360° diffusion and amplifi cation of light output.

Further information

Jokon Crystal Beacon Part Numer



Part Number Type Description
16.0100.002 Crystal R A LED Rotating Beacon
16.0105.002 Crystal F A LED Flashing Beacon
16.0101.002 Crystal R B LED Rotating Beacon
16.0106.002 Crystal F B LED Flashing Beacon
16.0102.002 Crystal R Flex LED Rotating Beacon
16.0102.002 Crystal B Flex LED Rotating Beacon
16.0124.002 Crystal 2.0 R A LED Rotating Beacon
16.0125.002 Crystal 2.0 F A LED Flashing Beacon
16.0126.002 Crystal 2.0 R B LED Rotating Beacon
16.0127.002 Crystal 2.0 F B LED Flashing Beacon
16.0128.002 Crystal 2.0 R Flex LED Rotating Beacon
16.0129.002 Crystal 2.0 F Flex LED Flashing Beacon
16.0110.002 WRK-A 110 LED Flashing Beacon
16.0111.002 WRK-B 110 LED Rotating Beacon
16.0116.002 WBX-B 110 LED Flashing Beacon
19.2102.002 Slip-on tube for welding on
19.2102.012 Slip-on tube for screwing on
19.2102.022 Slip-on tube for screwing in
19.2102.032 Slip-on tube for fitting on angular bracket (vertical)
19.2102.062 Slip-on tube for fitting on angular bracket (horizontal)
19.2102.072 Slip-on tube for sidewall installation, adjustable in 90°
19.2102.082 Slip-on tube extension 500mm
19.2102.092 Slip-on tube extension adjustable from 750 to 1250mm
Crystal Beacon

Key benefits

  • Crystal 2.0 according to ECE R65 Class 2: A day/night sensor adjusts brightness to avoid glare discomfort at night

  • Rotating (CRYSTAL R) and fl ashing versions (CRYSTAL F)

  • Synchronisation of max. 8 beacons
