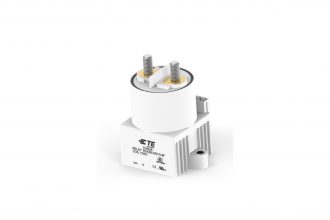

IHVA High-Voltage DC Contactor Series

TE Connectivity (TE) introduces the IHVA high-voltage DC contactor series which is designed for control in new energy applications. The IHVA product line is an innovative, cost-effective, and reliable solution for EV charging stations, automated-guided vehicles (AGV), e-Forklifts, solar inverters, and energy storage systems. The IHVA series is a non-gas filled contactor making it safe and reliable with less worry about the environment. These contactors are non-polarized and offer an optional auxiliary contact that can be used to monitor the power/main contact

ihva500

Get a quote

Can't find what you're looking for or just want to speak to someone about our products?

FURTHER INFORMATION

IHVA High-Voltage DC Contactor Series



APPLICATIONS

• DC charging
• Auto-guided vehicle
• e-Forklift
• Energy storage system

MECHANICAL

• Bottom mounted by flanged cover
• Main contact terminals connection is threaded
• Auxiliary contact terminal/coil terminal is a FASTON terminal which be can be connected with a connector

STANDARD

• UL 60947, cULus E58304, CCC

MATERIALS

• Ag alloy

ELECTRICAL

• 150A/200A, 110VDC, 6,000 cycles
• 150A/200A, 1500VDC, carry only
• 150A/200A, 450VDC, 100 cycles
• 150A/200A, 750VDC, 30 cycles
• 5A, 1500VDC, 500 cycles
• 20A, 1000VDC, 100 cycles
• 600A, make only, 3,000 cycles
• 2000A, 400VDC, break only, 2 cycles
