AMP+ HVP 800 Connectors & Headers

TE’s AMP+ high current connector system HVP 800 safely transport high currents and voltages from a battery to the inverter and e-motor with up to 250A (continuous) on 50mm2 wire. The watertight connectors provide a robust design that optimizes package size and plug and header selections to create multiple wire harness assembly routing options. The touch-proof 2- or 3-position connectors and headers are engineered with 90-degree and 180-degree plugs and feature integrated internal HVIL function and EMI shielding. The connector product family features a wide temperature and wire range, as well as multiple keying options for use in many hybrid and electric vehicle applications. Assembly is simplified with a lever assist for low insertion force.

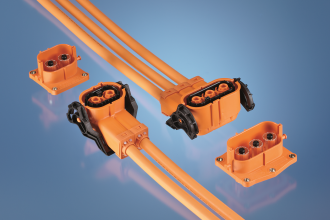

HVP800

Key benefits

  • AK 4.3.3, LV215-1, RoHS compliant

  • Wide wire range

  • 90° and 180° plugs

  • Touch-proof

  • No tool required to unmate

  • Integrated internal HVIL

  • Available in 2 position or 3 position (1 position in preparation)

  • Multiple key options

  • Sealed
