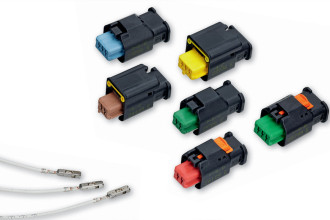

The family 2 and 3 position high performance (HP) connectors and high performance spring lock (HPSL) have been developed to meet severe OEM’s requirements, especially in condition of extreme vibration. The connectors can be used in the body car, with wire to wire applications as well as in the engine area on sensors or actuators. The HP family offers solutions to customer for electronic and electrical applications which require a high level of performance.
Wire to wire applications or wire to sensors/actuators
Spring lock version available (HPSL)
Primary and secondary (integrated TPA) receptacle lock
Full shroud (seal is protected all around the connector
Water tightness (IPX9K and 500mb immersion, with an included family seal)
Positive mate (Go-Nogo) locking feature is integrated in the housing
High vibration level - Resistance to extreme vibrations conditions (40G, with TE Connectivity’s Sensor Flat Contact 2 terminal)
Housing design is based on the 1.5 x 0.8mm receptacle and tab terminals in the centerline 3.33mm
Optional CPA for HP version
