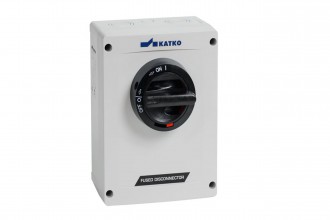

KATKO KKVM, KVKEM, KKVT, KVKET, KKVR and KVKER enclosed switch fuses range from 16A to 630A. Available in polycarbonate (KKVM/KVKEM), sheet steel (KKVT/KVKET) and stainless steel (KKVR/KVKER) versions, the enclosed switch fuses can be purchased as BS and DIN fuse versions.
| Type | AC-21 | 400 V | AC-22 | 400 V | AC-23 | AC-23 | EAN-Code | Enclosure | ||
| 415 V | 415 V | 400 V | 690 V | |||||||
| 690 V | 690 V | 415 V | ||||||||
| Model | Ie / A | Ie / A | Ie / A | Ie / A | ||||||
| Polycarbonate enclosures | ||||||||||
| KKVM | ||||||||||
| KKVM 316 | 16 A | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410377000 | U3 | ||
| KKVM 325 | 25 A | 25 A | 25 A | 11 kW | 25 A | 22 kW | 6419410377109 | U3 | ||
| KKVM 332 | 32 A | 32 A | 32 A | 15 kW | 32 A | 30 kW | 6419410377208 | U3 | ||
| KKVEM | ||||||||||
| KVKEM 320 | 20 A | 20 A | 20 A | 10 kW | – | – | 6419410391709 | U3 | ||
| KVKEM 332 | 32 A | 32 A | 32 A | 15 kW | – | – | 6419410391723 | U3 | ||
| KVKEM 363 | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410394052 | MF11 | ||
| KVKEM 380 | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 Kw | 6419410394151 | MF11 | ||
| KVKEM 3100 | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410394250 | MF11 | ||
| KVKEM 3125 | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410394359 | MF11 | ||
| KVKEM 3160 | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410394458 | MF11 | ||
| KVKEM 3200 | 200 A | 200 A | 200 A | 110 kW | 200 A | 160 kW | 6419410397565 | MF03 | ||
| KVKEM 3250 | 250 A | 250 A | 250 A | 132 kW | 250 A | 250 kW | 6419410391303 | MF03 | ||
| KVKEM 3315 | 315 A | 315 A | 315 A | 160 kW | 315 A | 315 kW | 6419410303108 | MF04 | ||
| KVKEM 3400 | 400 A | 400 A | 400 A | 200 kW | 400 A | 355 kW | 6419410391501 | MF04 | ||
| KVKEM 3630 | 630 A | 630 A | 630 A | 355 kW | 500 A | 500 kW | 6419410391600 | MF04 | ||
| Sheet-steel enclosures | ||||||||||
| KKVT | ||||||||||
| KKVT 316 | 16 A | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410379004 | TR01 | ||
| KKVT 325 | 25 A | 25 A | 25 A | 11 kW | 25 A | 22 kW | 6419410379103 | TR01 | ||
| KKVT 332 | 32 A | 32 A | 32 A | 15 kW | 32 A | 30 kW | 6419410379202 | TR01 | ||
| KVKET | ||||||||||
| KVKET 320 | 20 A | 20 A | 20 A | 10 kW | – | – | 6419410393154 | TR02 | ||
| KVKET 332 | 32 A | 32 A | 32 A | 15 kW | – | – | 6419410393161 | TR02 | ||
| KVKET 363 | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410395059 | TR03 | ||
| KVKET 380 | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 Kw | 6419410395158 | TR03 | ||
| KVKET 3100 | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410395257 | TR03 | ||
| KVKET 3125 | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410395356 | TR03 | ||
| KVKET 3160 | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410395455 | TR03 | ||
| KVKET 3200 | 200 A | 200 A | 200 A | 110 kW | 200 A | 160 kW | 6419410393208 | TR03 | ||
| KVKET 3250 | 250 A | 250 A | 250 A | 132 kW | 250 A | 250 kW | 6419410393307 | TR03 | ||
| KVKET 3315 | 315 A | 315 A | 315 A | 160 kW | 315 A | 315 kW | 6419410303245 | TR04 | ||
| KVKET 3400 | 400 A | 400 A | 400 A | 200 kW | 400 A | 355 kW | 6419410393505 | TR04 | ||
| KVKET 3630 | 630 A | 630 A | 630 A | 355 kW | 500 A | 500 kW | 6419410393604 | TR04 | ||
| Sheet-steel enclosures | ||||||||||
| KKVR | ||||||||||
| KKVR 316 | 16 A | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410378007 | H32 | ||
| KKVR 325 | 25 A | 25 A | 25 A | 11 kW | 25 A | 22 kW | 6419410378014 | H32 | ||
| KKVR 332 | 32 A | 32 A | 32 A | 15 kW | 32 A | 30 kW | 6419410378021 | H32 | ||
| KVKER | ||||||||||
| KVKER 320 | 20 A | 20 A | 20 A | 10 kW | – | – | 6419410378038 | |||
| KVKER 332 | 32 A | 32 A | 32 A | 15 kW | – | – | 6419410378045 | |||
| KVKER 363 | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410378052 | H03 | ||
| KVKER 380 | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 Kw | 6419410378069 | H03 | ||
| KVKER 3100 | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410378076 | H03 | ||
| KVKER 3125 | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410378083 | H03 | ||
| KVKER 3160 | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410378090 | H03 | ||
| KVKER 3200 | 200 A | 200 A | 200 A | 110 kW | 200 A | 160 kW | 6419410378106 | H03 | ||
| KVKER 3250 | 250 A | 250 A | 250 A | 132 kW | 250 A | 250 kW | 6419410378113 | H03 | ||
| KVKER 3315 | 315 A | 315 A | 315 A | 160 kW | 315 A | 315 kW | 6419410378120 | H04 | ||
| KVKER 3400 | 400 A | 400 A | 400 A | 200 kW | 400 A | 355 kW | 6419410378137 | H04 | ||
| KVKER 3630 | 630 A | 630 A | 630 A | 355 kW | 500 A | 500 kW | 6419410378144 | H04 | ||
IP65
Available as 1P, 2P, 3P and 4P versions
Good corrosion resistance
Wide operating temperature range
Padlockable
Door interlock with defeat mechanism
Excellent insulating properties
Good UV resistance
Good resistance against many chemicals
Available up to 630A
Tested according to IEC 60947-3
