EKO Connector

Field Proven Solution from Metros to high speed trains, The EKO Connector Series is designed with a built in locking system with captive screws and suitable for unshielded cable connection. The TE Connectivity EKO connector is compact, weight-saving and available in 1, 3 or 4 poles. In accordance with EN 50467 (2012), NFF 61030, EN 45545, DIN 5510, UNICEI 11170 and UL94 standards

Further information

TE Connectivity EKO Connectors

EKO Applications

EKO Functions

EKO Standards

  • Traction power













  • Propulsion and Braking
  • Auxiliary power supply











  • EN 50467
  • NFF 61030
  • EN 45545
  • DIN 5510
  • UNICEI 11170
  • UL94

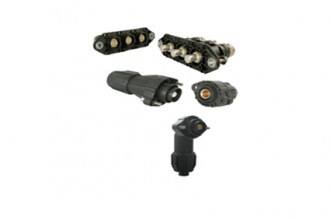

EKO Connectors

Key benefits

  • High level of performance

  • Straight and 90º connection

  • Rated current: up to 800 A

  • Service voltage: up to 3000 V DC/AC

  • Temperature range: -40ºC +100ºC

  • Compact and weight-saving

  • Halogen free

  • Vibrations and shocks: EN 61373 category 1B
