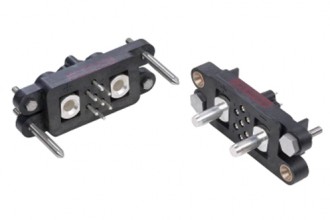

Designed specifically for battery racks, TE Connectivity CSR Series rail connectors rackable power connector current ratings are - 350 A (Ø14) - 500 A (Ø18) and pilots 30 A (Ø4). The fixed socket and floating plug, offers a misalignment tolerance of ±2mm; for easier mating.
CSR Applications |
CSR Functions |
CSR Standards |
|
|
|
2 power contacts for terminal lugs - Caliber 14 / M10 threaded or Caliber 18 / M12 threaded
Ancreased safety during operations
Auxiliary crimp contacts Ø4
Fixed socket and floating plug
Service voltage: 700 V DC
