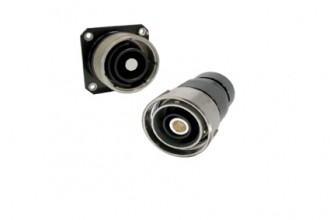

CPP Connector

Aluminium or bronze connector with screw locking system. Available in single or multi-poles over 4 shells and 8 configurations. The ruggedized power connector, has high vibration resistance and EMI/RFI shielding protection.

Further information

TE Connectivity CPP Power Connectors

CPP Applications

CPP Functions

CPP Standards

  • Inter-Vehicle
  • Traction power





  • Propulsion and Braking
  • Auxiliary power supply
  • Inter-Vehicle
  • Air conditioning
  • NFF 61030
  • DIN 5510
  • UNICEI 11170
  • UL94
CPP Connector

Key benefits

  • High dynamic applications

  • Ruggedized power connector

  • Field-proven solution from metro to high speed train

  • Rated current: from 15 to 500 A

  • Service voltage: up to 2000 V

  • Withstand voltage: up to 7500 V

  • Vibrations and shocks: EN61373 category 1B
