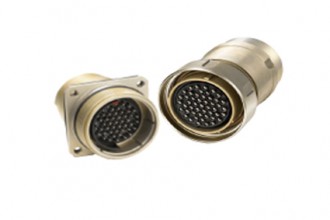

TE Connectivity CMC rail signal connector is a field-proven solution from metro to high speed train. Built according to NFF 61030, DIN 5510, UNICEI 11170 and UL94, for high dynamic inter-vehicle, traction power, train control and sub systems applications.
Designed according to the NFF61030 standard and based on 6 shell sizes and more than 20 arrangements, TE Connectivity CMC Series will answer to all high dynamic, single or multicore cable applications. A field proven solution from metro to high speed train for very harsh environments. Available in for cables sizes from 0.5mm2 to 95mm2, the CMC series is adapted for all signal intervehicle and cross panel applications.
CMC Applications |
CMC Functions |
CMC Standards |
|
|
|
Rated current: from 15 to 250 A
Withstand voltage: 2550 V or 3250 V
From 4 to 61 crimp contacts over 6 shells and 22 configurations
Crimp solid contacts, coax twinax, quadrax cell or optical
EMI/RFI shielding protection
Vibrations and shocks: EN61373 category 1B
