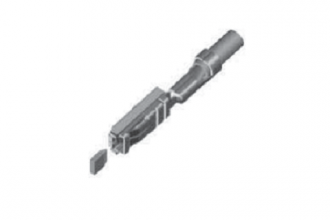

The Bosch sensor contact 2.8 (BSK 2.8) is a flat contact for 2.8 x 0.8 mm blade contacts. A special spring mechanism protects the contact point against fretting. The BSK 2.8 was developed for plug-in connections subjected to high levels of vibration (direct engine attachment). The tinned version of the contact is suitable for temperatures up to max. 130°C or up to 150°C if gold-plated. The primary-locking function is provided by the locking-spring arrangement. Secondary locking is possible from four sides between the contact element and the crimping area and from two sides in the area in front of the locking springs.
For high vibration resistance
Suitable for use up to 150°C (Au surface)
Secondary locking possible
4 contact points
Wire cross-sections: 0.5…2.5 mm
Contact spacing: 5 mm
Row spacing: 5 mm (5.5 mm)
Temperature range: -40° C…+130° C (tinned version) -40° C…+150° C (gold-plated version)
Wiring seal: Individual wire se
Rated voltage: 20 mV…40 V (DC)
Current-carrying capacity: Max. 14 A (at 90° C and with Au surface)
