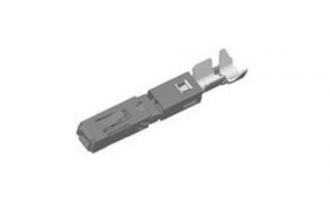

The Bosch micro-contact 1.5-D (BMK 1.5-D) is a box-type contact used for 1.5 x 0.63 mm blade contacts. It is designed for use in heavy-duty plug-in connections, particularly for diesel engines and diesel assemblies. The contact features a load-reducing decoupling mechanism and a steel overspring. The tinned version of the BMK 1.5-D contact is suitable for temperatures up to max. 130°C or up to 150°C if gold-plated.The primary-locking function is provided by two locking springs at the steel overspring. A 180° change in contact fitting position is possible, and also secondary locking.
Load-reducing decoupling mechanism
High long-term thermal stability (up to 150°C, Au surface)
Secondary locking possible
High vibration resistance
Suitable for use with silicone gel sea
Wire cross-sections: 0.75…2.5 mm2
Contact spacing: Horizontal 4.5 mm Row spacing: 4.3 mm (two rows)
Temperature range: -40° C…+130° C (tinned version) -40° C…+150° C (gold-plated version)
Wiring seal: Silicone gel seal
Rated voltage: 20 mV…40 V (DC)
Current-carrying capacity: Max. 7 A (at 110° C and with Au surface)
