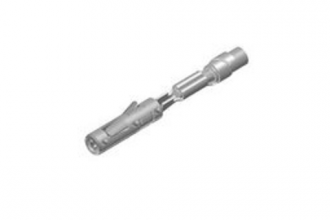

The Bosch micro-contact 0.6 (BMK 0.6) for 0.635 mm post contacts is specially designed for use in confined spaces. It has two contact springs and a steel overspring for greater contact force. The tinned version of the BMK 0.6 contact is suitable for temperatures up to max. 130°C or up to 150°C if gold-plated. The primary locking function is provided by the locking spring arrangement at the overspring. A 180° change in contact fitting position and secondary locking in the area between the contact element and the crimp zone are possible.
For close contact spacing
High long-term thermal stability (up to 150°C, Au surface)
Secondary locking possible
High vibration resistance
Suitable for use with silicone gel seal
Wire cross-sections: 0.35...0.75 mm2
Contact spacing: 2.5 mm
Row spacing: 2.5 mm (4 mm)
Temperature range: -40° C...+130° C (tinned version), -40° C...+150° C (gold-plated version)
Wiring seal: Silicone gel sea
Rated voltage: 20 mV...40 V (DC)
Current-carrying capacity: Max. 6 A (at 90° C and with Au surface)
