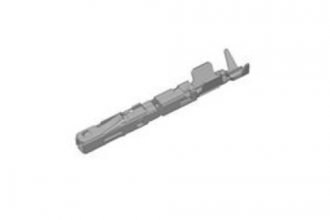

The Bosch micro-contact 0.6-D (BMK 0.6-D) is a box-type contact used for 0.635 mm post contacts. It is designed for use in heavy-duty plug-in connections, particularly for diesel engines and diesel assemblies. The contact features a load-reducing decoupling mechanism and a steel overspring. The tinned version of the BMK 0.6-D contact is suitable for temperatures up to max. 130°C or up to 150°C if gold-plated. The primary locking function is provided by the locking spring arrangement at the steel overspring. A 180° change in contact fitting position is possible, and also secondary locking.
For close contact spacing
High long-term thermal stability (up to 150°C, Au surface)
Secondary locking possible
High vibration resistance
Suitable for use with silicone gel seal
Wire cross-sections: 0.35…0.75 mm2
Contact spacing: 2.5 mm
Temperature range: -40° C…+130° C (tinned version) -40° C…+150° C (gold-plated version)
Wiring seal: Silicone gel sea
Rated voltage: 20 mV…40 V (DC)
Current-carrying capacity: Max. 6 A (at 90° C and with Au surface)
