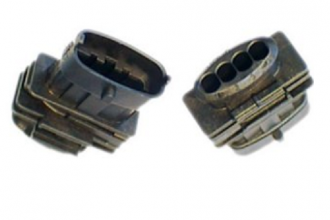

The coupler plug is used as a break connector. The corresponding female plug is the compact connector. The plug-in connection has a radial seal at the compact connector. An individual wire sealing system is used for the wiring. The coupler plug is suitable for engine-compartment installation and engine attachment. It can be secured in position on the vehicle by means of a plastic or metal holder.
Coupling for compact connector
Sealed design
Four encoding options
2.8mm flat blade can be fitted
Mount for vehicle attachment
Vibration resistance: 20 g
Temperature range: -40⁰C…+150⁰C (contact with gold-plated surface)
Degree of sealing: IP 54K, IP 69K
Connection cross-sections: 0.35…1.0mm²
Suitable contacts: Flat blade 2.8mm can be fitted
Contact spacing: 5mm
