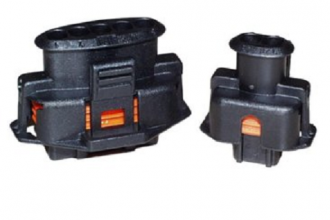

The compact connector Compact 1.1a is used for the connection of automotive electronic assemblies such as sensors and actuators. The plug-in connection has a radial seal and has individual wire seals for the wiring. The plug-in connection is suitable for engine-compartment installation and for engine-mounted components. This connector also has a moulded shield in the area of the radial seal. The compact connector is connected (disconnected) directly and locked by a plastic lug.
BDK contact (advanced version of BSK contact)
Moulded shield
Sealed plug-in connection
No. of contacts: 2…3
Individual wire seal
Less space required
Vibration resistance: 30 g
Temperature range: -40⁰C…+150⁰C (contact with gold-plated surface)
Degree of protection: IP X4K, X6K, X9K
Connection cross-sections: 0.5…2.5mm²
Suitable contacts: BDK 2.8 (advanced version of BSK 2.8) with individual wire seal
Contact spacing/posts: 5mm/2.8mm
