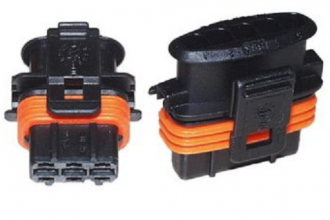

The compact connector Compact 1.1 is used for the connection of such automotive electronic assemblies as sensors and actuators. The plug-in connection has a radial seal and individual wire seals for the wiring. The plug-in connection is suitable for engine-compartment installation and engine-mounted components. The compact connector is connected (disconnected) directly and locked by a plastic lug.
BDK contact (advanced version of BSK contact)
Sealed plug-in connection
No. of contacts: 2, 3, 5
Individual wire seal
Less space required
Vibration resistance: 20…30 g (depending on number of poles)
Temperature range: -40⁰C…+150⁰C (contact with gold-plated surface)
Degree of protection: IP X4K, X9K
Connection cross-sections: 0.5…2.5mm²
Suitable contacts: BDK 2.8 (advanced version of BSK 2.8) with individual wire seal
Contact spacing/posts: 5mm/2.8mm
