The 84-way wiring-harness connector is a plug-in connection for bodywork attachment in the passenger compartment. The plug-in system is non-sealed and was developed for an airbag system. There is only one possible outgoing cable side. A lever/claw system is used for pull-in and locking.

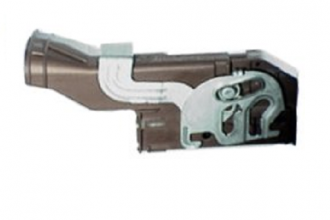

Bosch 84 way plug in connection

Key benefits

  • Non-sealed plug-in connection

  • Secondary lock

  • Suitable for use up to 85⁰C

  • Softline design

  • One contact size

  • Operating lever

  • 10 encoding options

  • Vibration resistance: 2 g

  • Temperature range: -40⁰C…+85⁰C

  • Degree of sealing: IP X6K (dust)

  • Connection cross-section: 0.35…1mm² (MQS)

  • Suitable contacts: 84x MQS

  • Blade: MQS 0.64mm
