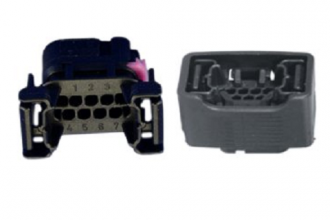

The 7-way plug-in connection is used for sensor connection in motor vehicles. The plug-in connector is locked on both end faces. It is also available with a locking mechanism on the long side (locking pin).
Not sealed
Secondary locking possible
Degree of protection: IP30
Connection cross-sections: 0.35…0.75mm²
Suitable contacts: BMK 0.6
Contact spacing/posts: 3mm/0.63mm
