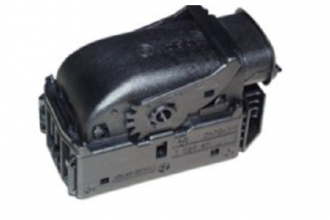

The 56-way wiring-harness connector is a compact high-way plug-in connection for hybrid control units with 0.6mm signal contacts and 1.5mm power contacts. The plug-in system is suitable for direct diesel-engine/diesel-pump attachment. A silicone gel seal is used for the cable. This means there is no need for additional sealing (e.g. dummy plugs) if not all contacts are used. A slide operated by a lever attached to the cover is used for pull-in and locking.
Sealed plug-in connection
For heavily oscillating loads (attached to: e.g. diesel engines, diesel assemblies)
Suitable for use up to 140⁰C
Secondary lock
Silicone gel seal
Vibration resistance: up to 50 g
Temperature range: -40⁰C…+140⁰C
Degree of protection: IP 54K, 56K, 59K
Connection cross-sections: 0.5…0.75mm² (BMK 0.6-D), 0.5…2.5mm² (BMK 1.5-D)
Suitable contacts: BMK 0.6-D, BMK 1.5-D
Contact spacing/posts: BMK 0.6-D; 2.5mm/0.6mm, BMK 1.5-D; 4.5mm/1.5mm
