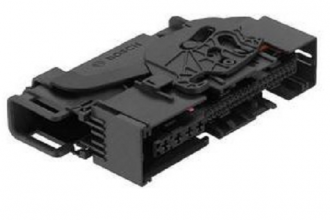

The 46-way wiring-harness connector is a compact high-way plug-in connection for ASR/ESP control units. A silicone gel seal (BMK 0.6) or individual wire seals ( MCP 2.8) are used for the cable. Thanks to the gel seal, no additional sealing (e.g. dummy plugs) is required for non-used signal pins (BMK 0.6). A lever/claw system is used for pull-in and locking.
Sealed plug-in connection
Low insertion force
Integrated secondary lock
Silicone gel seal (GD) and individual wire seal
High-current contacts
Signal-current contacts
Vibration resistance: 3 g
Temperature range: -40⁰C…+120⁰C
Degree of protection: IP X4K, X6K, X9K
Connection cross-sections: 1.5…4.0mm² (MCP 2.8), 0.5…0.75mm² (BMK 0.6)
Suitable contacts: 4x MCP 2.8 with individual wire seal, 42x BMK 0.6
Contact spacing/posts: BMK 0.6: 2.5mm x 3.5mm/0.63mm
