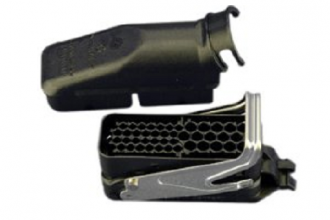

The 43-way wiring-harness connector is a sturdy plug-in connection for use in the engine compartment. The plug-in system is immersion-proof and was developed for engine control units in trucks. An axial seal is used for the plug-in connection and individual wire seals for the wiring. The outgoing cables can be on the right or left. The plug-in connection can only be made with the secondary lock fastened. A metal lever is used for pull-in and locking.
Sealed plug-in connection
Secondary lock
Suitable for use up to 105⁰C
Softline design
Two contact sizes
B encoding options
Vibration resistance: 6 g
Temperature range: -40⁰C…+105⁰C
Degree of sealing: IP X6K, X7, X9K, 6KX (dust)
Connection cross-section: JPT - 0.35…2.5mm², MT2 - 0.35…1mm²
Suitable contacts: 15x JPT, 28x MT2
Blade: JPT 2.8mm / MT2 1.6mm
