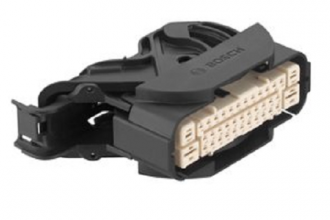

The 38-way wiring-harness connector is a compact high-way plug-in connection particularly suitable for complex hybrid control units which have to satisfy engine attachment conditions. Use is made of a silica gel seal for the cable. This means there is no need for additional sealing (e.g. dummy plugs) if not all contacts are used. Pull-in and locking are implemented by way of a metal lever.
Sealed plug-in connection
For confined spaces
Suitable for use up to 130⁰C
Silicone gel seal
For high vibration resistance (up to 20 g)
Temperature range: -40…+130⁰C
Degree of protection: IP 54K, IP 69K
Connection cross-sections: 0.5…0.75mm²
Suitable contacts: BMK 0.6
Contact spacing/posts: 2.5mm/0.64mm
