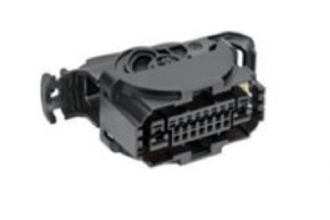

The 26-way wiring harness connector is a compact high-way plug-in connection for ABS/ASR/ESP control units. A silicone-gel seal (BMK 0.6) or individual wire seals (MCP 2.8) are used for the cable. Thanks to the gel seal, no additional sealing (e.g. dummy plugs) is required for non-used signal pins (BMK 0.6). Pull-in and locking are by a lever/claw system.
Sealed plug-in connection
Low insertion force
Integrated secondary lock
Silicone-gel seal (GD) and individual wire seal
High-current contacts
Signal-current contacts
Temperature range: -40⁰C…+120⁰C
Degree of protection: IP X 4K, X6K, X9K
Connection cross-sections: 1.5…4.0mm² (MCP 2.8); 0.5…0.75mm² (BMK 0.6)
Suitable contacts: 4x MCP 2.8 with individual wire seal, 22x BMK 0.6
Contact spacing/posts: BMK 0.6: 2.5mm x 3.5mm/0.63mm
