The 141-way wiring-harness connector consisting of three modules is a high-way plug-in connection designed for a particularly long service life and for use with common-rail control units. The plug-in system is suitable for direct attachment for diesel engine crankcases. The silicone gel seal (BMK 0.6) and individual wire seals (BDK 2.8) are used for the cable. Thanks to the gel seal, no additional sealing (e.g. dummy plugs) is required for non-used signal pins. The module covers have mounts for grooved tubes and adapters/angular outlets. Pull-in and locking is by lever (16 and 36-way module), or lever-operated slide (89-way module).

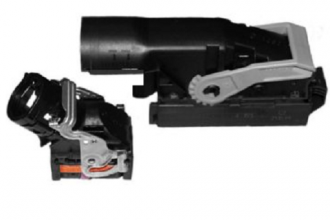

Bosch 141 way plug in connection

Key benefits

  • Commercial-vehicle engine attachment

  • Integrated secondary lock

  • Silicone gel seal and individual wire seals

  • Suitable for grooved-tube connection

  • 3 modules

  • High-current contacts

  • Signal contacts

  • Vibration resistance: approx. 8 g

  • Temperature range: -40⁰C…+105⁰C

  • Degree of protection: IP 54K, 66K, 69K

  • Connection cross-sections: 0.5…2.5mm² (BSK 2.8), 0.5…0.75mm² (BMK 0.6)

  • Contacts: 41x BSK 2.8 with individual wire seal, 100x BMK 0.6

  • Contact spacing/posts: BSK 2.8; 5.8mm x 5.7mm, BMK 0.6; 2.54mm x 3.5mm
