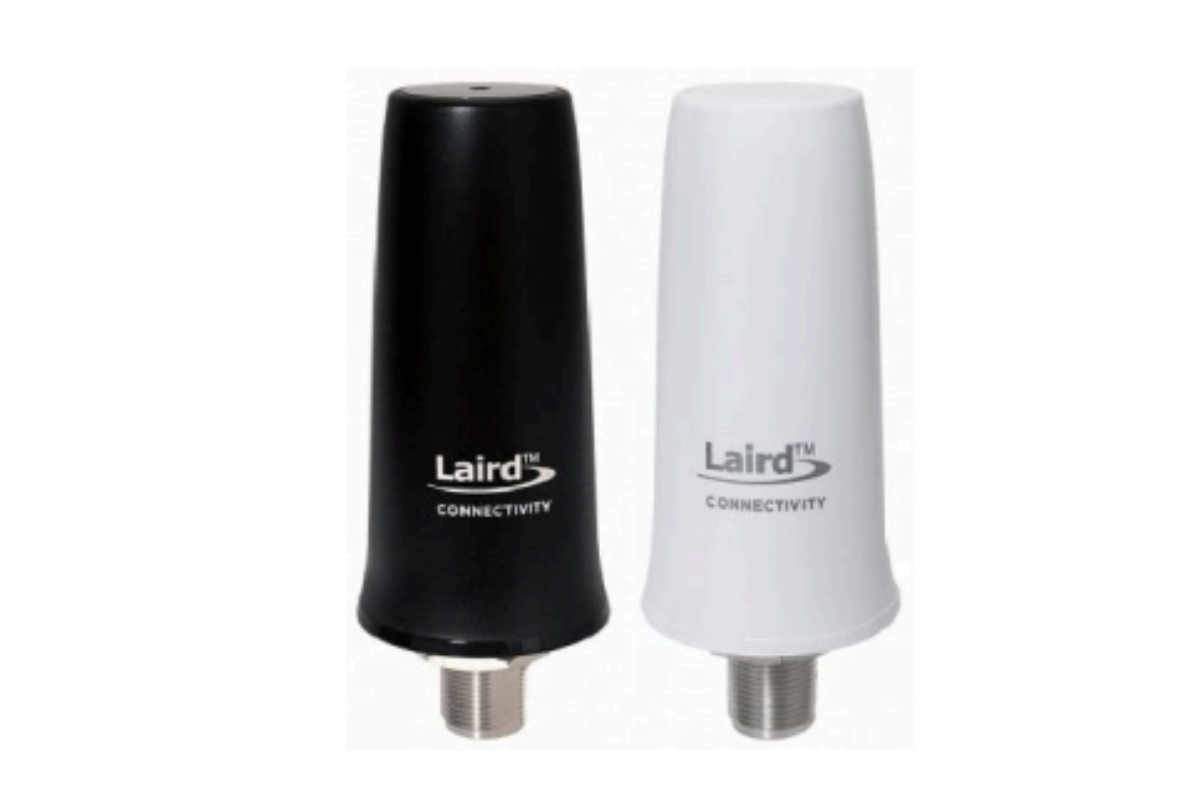

5G Phantom Series Antennas

5G Phantom antennas deliver global cellular coverage, even for regions where the lower 600 MHz band is required. They offer high levels of average efficiency, over 80% up to 4200 MHz, and gain up to 6.0 dBi in an IP67-rated, compact form factor. On ground (M5) or ground plane independent (M6) versions available.

Further information

TE Connectivity 5G Phantom Series Antenna Part Numbers

Part Number Frequency (MHz) VSWR Peak Gain (dBi) Mounting Colour
FTRA6171M5PB-001 617-7125 <2.0:1 6.0 Permanent Black
FTRA6171M5PW-001 617-7125 <2.0:1 6.0 Permanent White
FTRA6971M5PB-001 697-7125 <2.0:1 6.0 Permanent Black
FTRA6971M5PW-001 697-7125 <2.0:1 6.0 Permanent White
FTRA6171M6PBN-001 617-7125 <2.0:1 6.0 Permanent Black
FTRA6171M6PWN-001 697-7125 <2.0:1 6.0 Permanent White
FTRA6971M6PBN-001 697-7125 <2.0:1 6.0 Permanent Black
FTRA6971M6PWN-001 697-7125 <2.0:1 6.0 Permanent White
