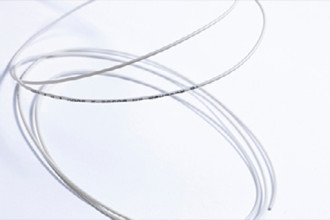

400R Low power/ Sensor cable

TE Connectivity Raychem 400R Low power/ sensor cable are lightweight with conductor cores available from 26AWG to 10AWG. Flexibility allows the 400R low power cable not wrinkle whilst bending. The dual wall construction offers oil, notch and abrasion resistance.

Further information

TE Connectivity Raychem 400R Low power/ Sensor cable

  • Compliant with:
    • NFPA 130 Flammability
    • NFPA 130 Total Smoke Release
    • NFPA 130 Peak Smoke Release
    • BSS 7238 Ds Smoke 4 Minutes
    • BSS 7238 Dm Smoke 4 Minutes
    • BSS 7239 Toxicity
400R

Key benefits

  • Dual wall High flame resistance primary wire, supplied as both single core signal wire, and Multi core cable, for the USA rail market

  • Voltage rating: 600 V

  • Temperature rating: -65ºC up to +125ºC (wire)
