M12 90° Rail cable connectors

4th May 2016  |  Rail

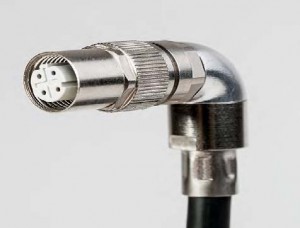

TE Connectivity (TE) introduces the M12 Rail 90° cable connector, a field installable connector developed for fault-free data transfers in harsh environments. This connector is specifically suited for harsh conditions due to the crimp termination of the signal contact and cable shield. The 90° design accommodates applications with limited available space for the cable exit.

• Accommodate tight installation conditions with flexible cable exit of 90o
• Install on site with field installable product portfolio
• Enable fault-free data transfer in harsh environments with rugged connector design
• Save time with ease field assembly
• Realise smaller mechanical constructions with compact connector dimensions featuring a small diameter
•  Withstand factory conditions with torsion and vibration-proof strain relief
•  Realise quick installation with simple selection of the position and lock against rotation of the cable outlet



M12 90° Connector



TE Connectivity M12 90° Rail cable connectors information sheet



M12 90° Rail cable connector selection guide

 Code

 Part Number   Cable Description No of Positions Male

 Female

D-Code

1-2823588-1 CAT 5

RADOX 7.3mm H&S

M12 D-Code Male front cable mount 4 x

D-Code

1-2823588-2 CAT 5

RADOX 7.3mm H&S

M12 D-Code Female front cable mount 4

x

D-Code

1-2823588-3 TE CAT 5 M12 D-Code Male rear cable mount 4 x

D-Code

1-2823588-4

TE CAT 5

M12 D-Code Female rear cable mount

4

x

A-Code

1-2823587-2 TE CAT 5 M12 A-Code Male front cable mount 5 x

A-Code

1-2823587-3 TE CAT 7 M12 A-Code Female front cable mount 8

x

A-Code 1-2823587-4

TE CAT 7

M12 A-Code Male rear cable mount

8

x

Source: TE Connectivity (TE)
