There are three main components of Series 7000 Timing.Relays: Timing Head circulates air through a variable length to provide linearly adjustable timing. Patented design provides easy adjustment and long service life under severe operating conditions. Precision-Wound Potted Coil Total sealing without external leads eliminates moisture problems, gives maximum insulation value. Snap-Action Switch Assembly— custom-designed over-center mechanism provides snap action. Standard switches are DPDT arrangement. Each of these sub-assemblies forms self-contained modules assembled at the factory with the other two to afford a wide choice of operating types, coil voltages, and timing ranges. The squared design with front terminals and rear mounting permits the grouping of Series 7000 units side-by-side in minimum panel space. Auxiliary switches may be added in the base of the unit, without affecting the overall width or depth.

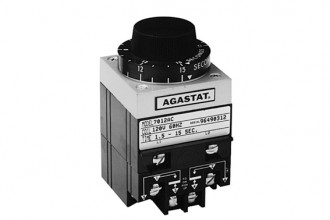

AGASTAT 7000 Series
Many mounting options — Surface mount, Panel mount, Octal plug-in mounting
Options: quick-connect terminals, dial stops, and transient protection module
Available in on-delay, true off-delay, and on/off-delay
Timing from 0.1 seconds to 60 minutes, in linear increments
Oversize adjustment knobs, serrated with high-resolution markings visible from all angles makes the timer easy to set timers
Inherent transient immunity
Standard voltages from 6-550VAC and 12-550VDC (special voltages available)
Available in 2-pole or 4-pole models
Numerous enclosure options — explosion proof, dust tight, watertight, hermetically-sealed, NEMA 1
Auxiliary timed and instantaneous switches can be added for greater switching flexibility
Easy-to-reach screw terminals, all on the face of the unit, clearly identified
Modular assembly — timing head, coil assembly and switchblock are all individual modules, with switches field-replaceable
