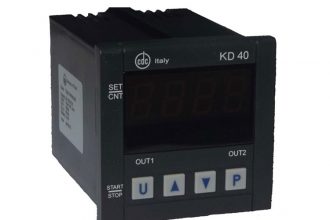

KD40 mono-bidirectional impulse counter with a micro-process operating, four led digit display and two output relays.
On the counter is possible to set: 2 set-points,3 working modes on the OUT 1, four working modes for the OUT 2 and it possible to visualize the incoming pulses divided by a value up to 9999.
The counter is available in two models: a) type KD401C: the pulses come from a free-voltage contact or from a static < NPN> based model. b) type KD401V: the pulses are voltage dependent (same value as the power line).The counter-programming is done through 3 front based keys. One more key “U” is available as reset.
The set-points are changeable even during the working cycle; instead the programming is possible only when the counter is reset to zero. It is possible also to lock the programming of the operative parameters (except the set-points). The SET/ CNT led points out if the counter is working (fixed on), if it is in programming mode (blinking) or it is not active (fixed off).
The settable counting frequencies are:
The output relay OUT1, with C1 value, turns ON at the end of the counting and with the parameter F1=1 or 2 it can be temporised through the parameter < r >.
The relay OUT2 works as a slow-down output and it is activated before OUT1. Its value must not be superior at C1 and it can be set as :
Supply voltage 24 Vac-dc
115/230 Vac 50/60Hz
