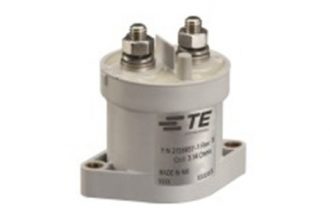

TE's EVC 500 main contactors provide fast and reliable switching of the high voltage battery to the vehicle system in hybrid and electric vehicles. The compact contactors offer 900VDC and 500 Amps continuous current carrying capabilities. The contactors are capable of 2000 Amp interrupt at 320 VDC. Evolved from fighter jet technology, the high voltage contactors provide current switching capabilities in harsh environments with no oxidation or contamination of contacts during long periods of non-operation. The EVC 500 contactor is designed with an optional built micro-controller or timer-based coil economizer.
| Part Number | Part Code | Coil Voltage | Coil Termination | Connection Hardware |
| 2098372-1 | EVC500-A1ANAM | 12 VDC (external economizer required) | 15 in (380 mm) stripped wire | Included |
| 2098190-1 | EVC500-AAANAM | 12 VDC (with economizer) | ||
| 2138806-1 | EVC500-AAANAN | None | ||
| 2203115-1 | EVC500-BAANAM | Included |
Limiting break current up to 1,560A
Hermetically sealed
500 Amp continuous current rating
Voltage rating (max): 450 VDC
Compact package
Fast high voltage interrupt capability
Optional built-in coil economizer
Robust bottom mounting with optional economiser enclosure
