The DEUTSCH HD10 Series, by TE Connectivity, is a line of environmentally sealed circular connectors. Designed for harsh environments, the HD10 series is built from a rugged thermoplastic material, making them perfect for hard industrial, commercial and agriculture applications.

The HD10 Series is available in in-line and flanged variations, and accepts either size 12 or size 16 electrical contacts. Additionally, they accept a combination of size 16 and size 4 contacts, offering much more versatility than other circular options available on the market.

View Connectors

Explore the HD10 Series

The HD10 Series is a versatile connector series, powering connections in engine, transmission, controllers, and data link applications. The versatility is provided by an optional flange mounting, the option of multi-pin designs, low costs and greater design flexibility. Owing to their design, they enable automotive designers to use multiple size contacts, all within a single shell.

HD10 Connector Plugs

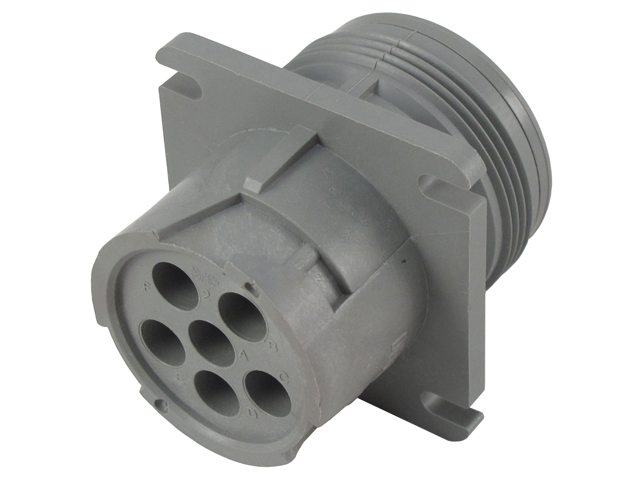

HD10 Connector Receptacles

HD10 Connector Backshells

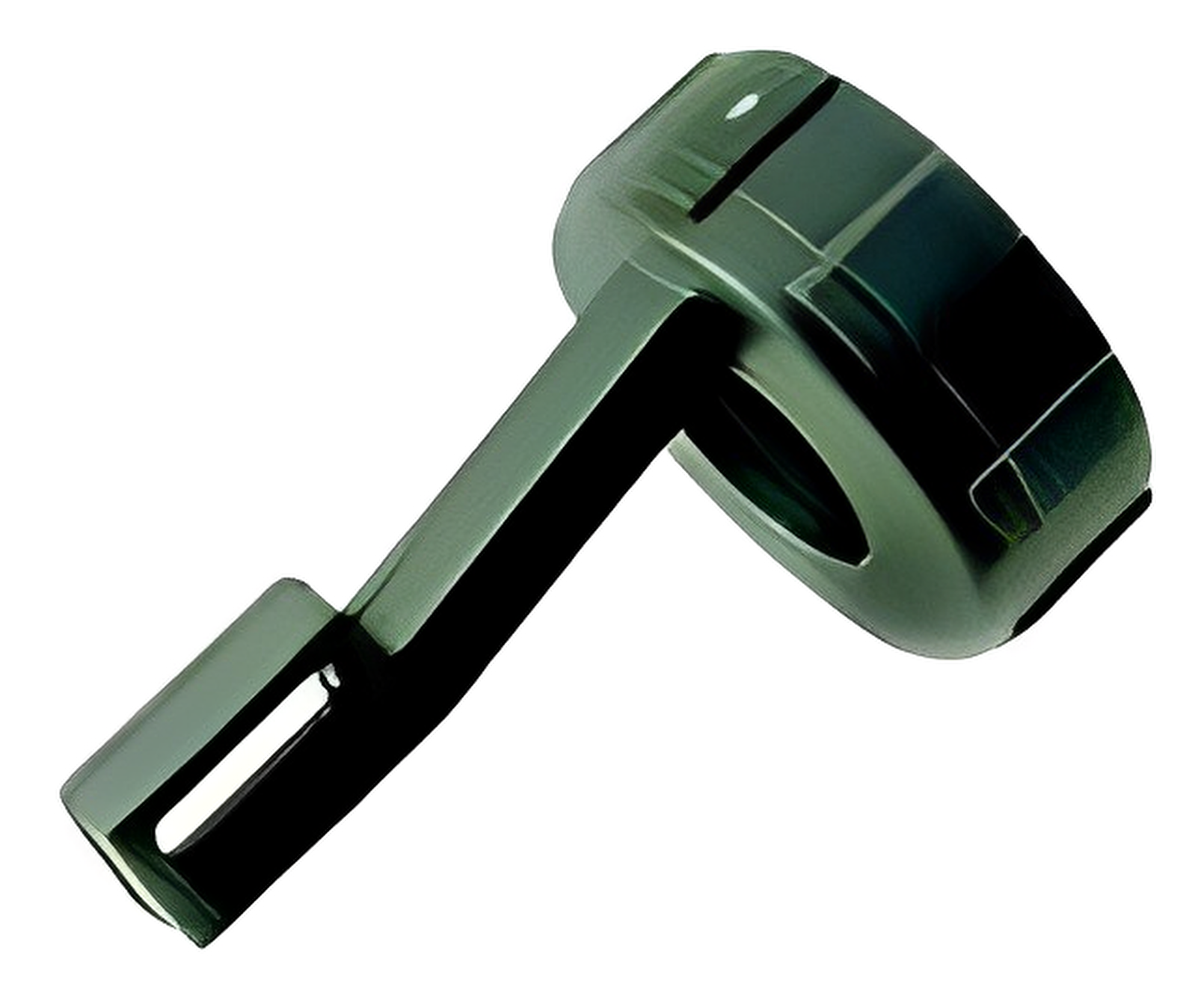

HD10 Connector Strain Relief

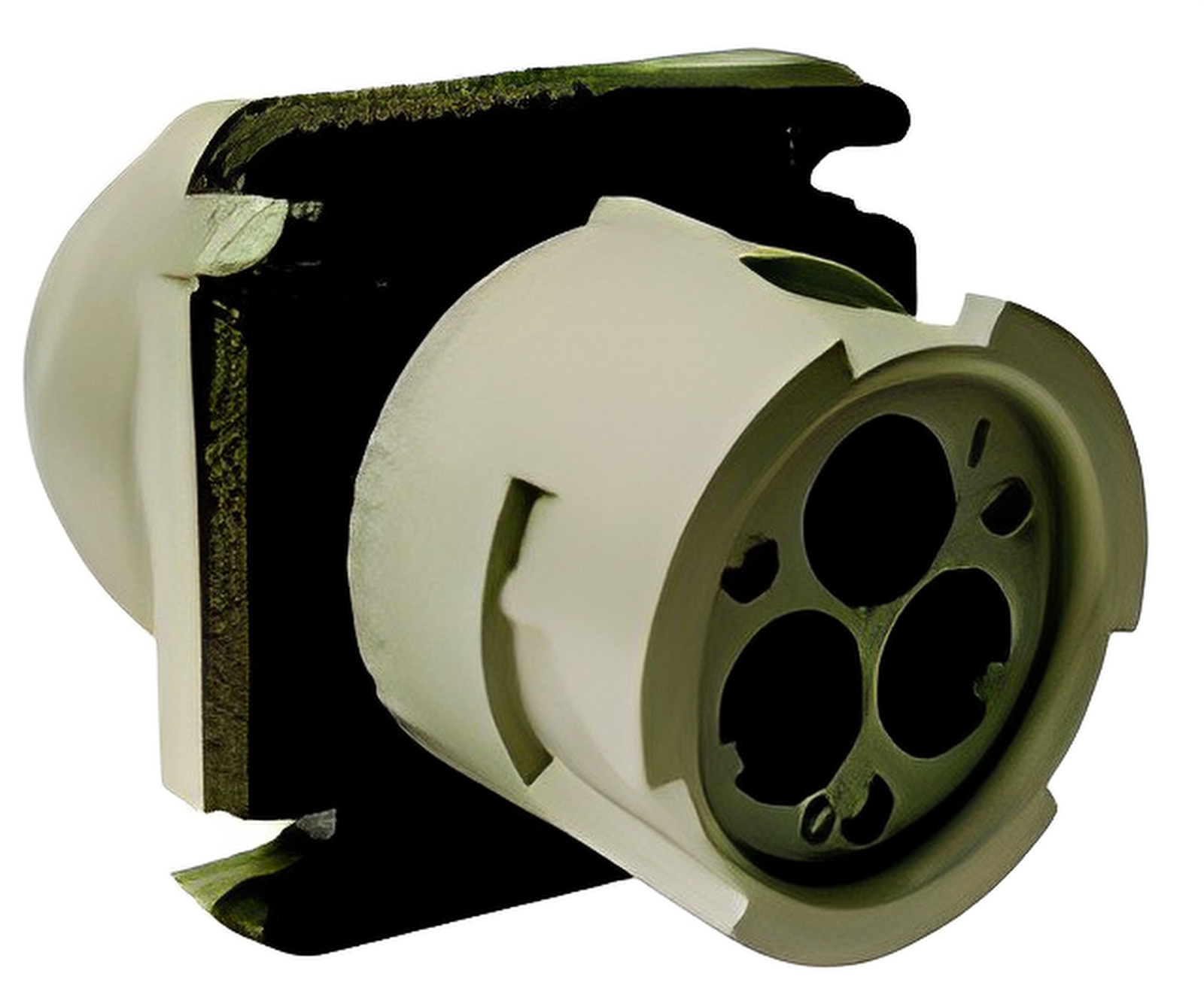

HD10 Connector Gaskets

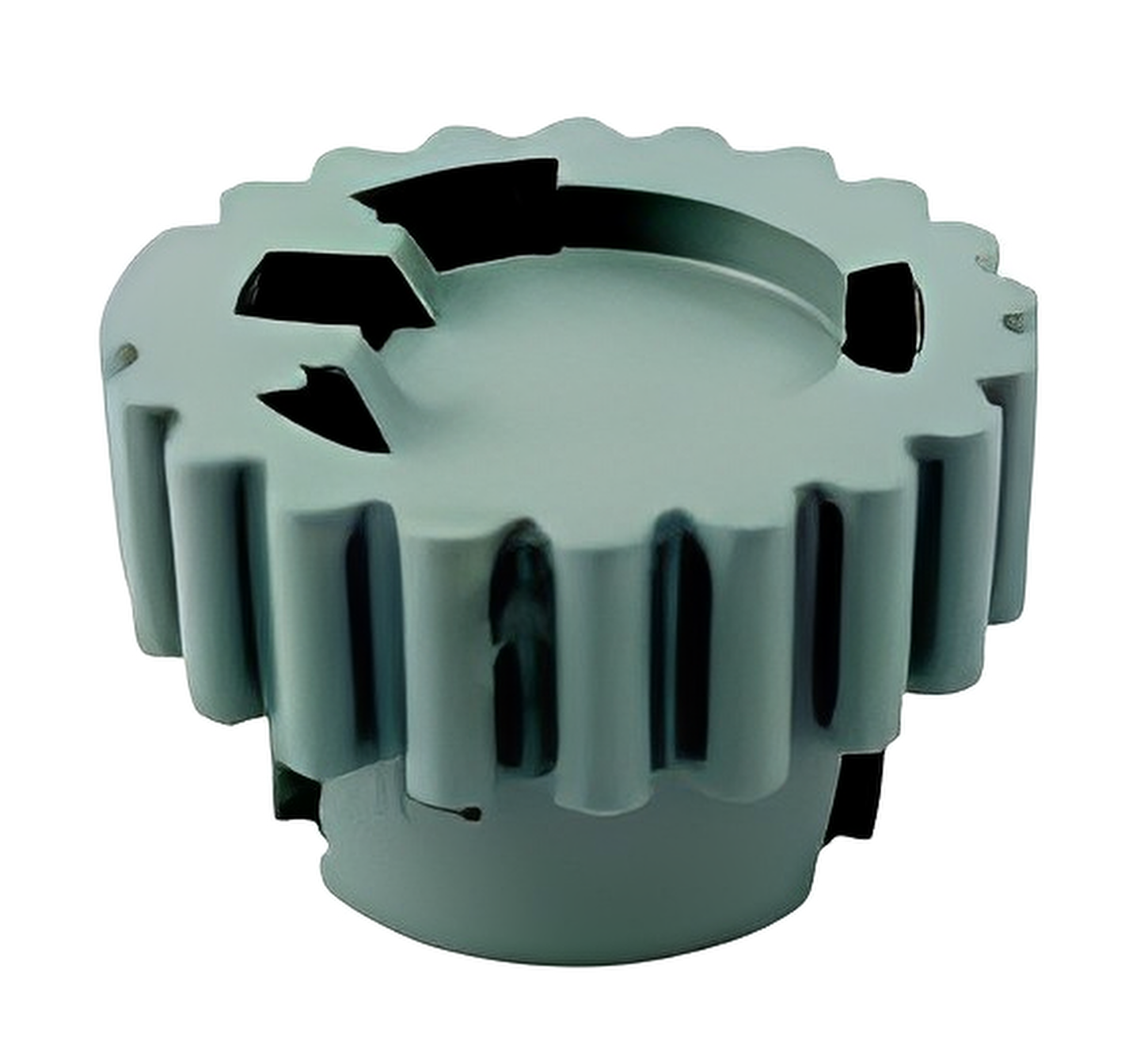

HD10 Connector Dust Cap

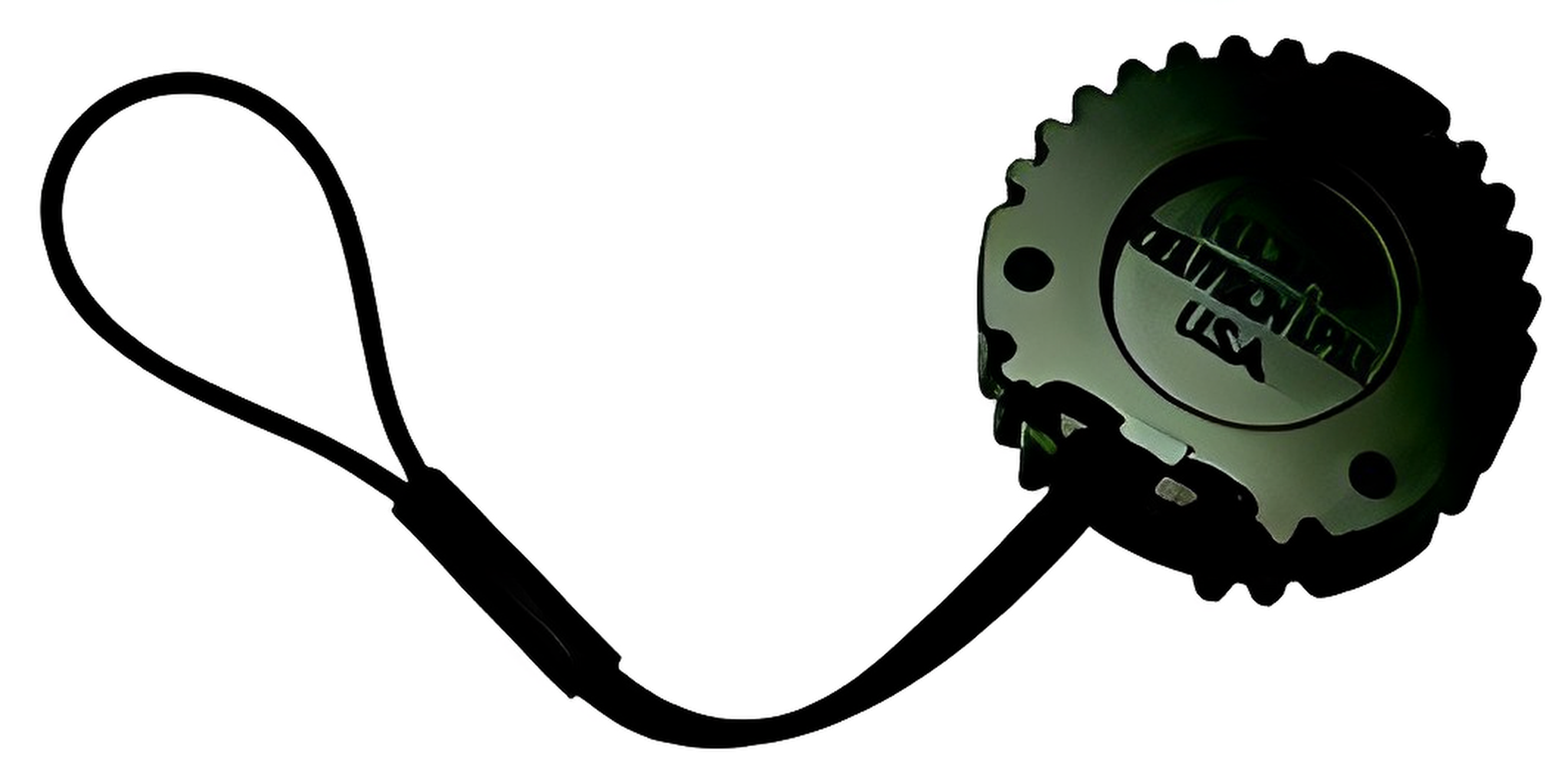

HD10 Connector Lanyards

HD10 Series Technical Specifications & Drawings

The HD10 Series accepts contacts sized: 4 (100 amps), 12 (25 amps), & 16 (13 amps). The series offers 3, 4, 5, 6 and 9 cavity arrangements, with in-line, flange and PCB mounting options. Get the full technical specifications, drawing and assembly instructions below.

Download

DEUTSCH HD10 Series Overview

Discover the full range of DEUTSCH Connectors

Dalroad is proud to be the official distributor of TE Connectivity products to the United Kingdom and Ireland. TE Connectivity is the company behind DEUTSCH, the leading automotive connector brand. We not only distribute TE products, but we deliver first-class support, direct from product and automotive electronics experts.
