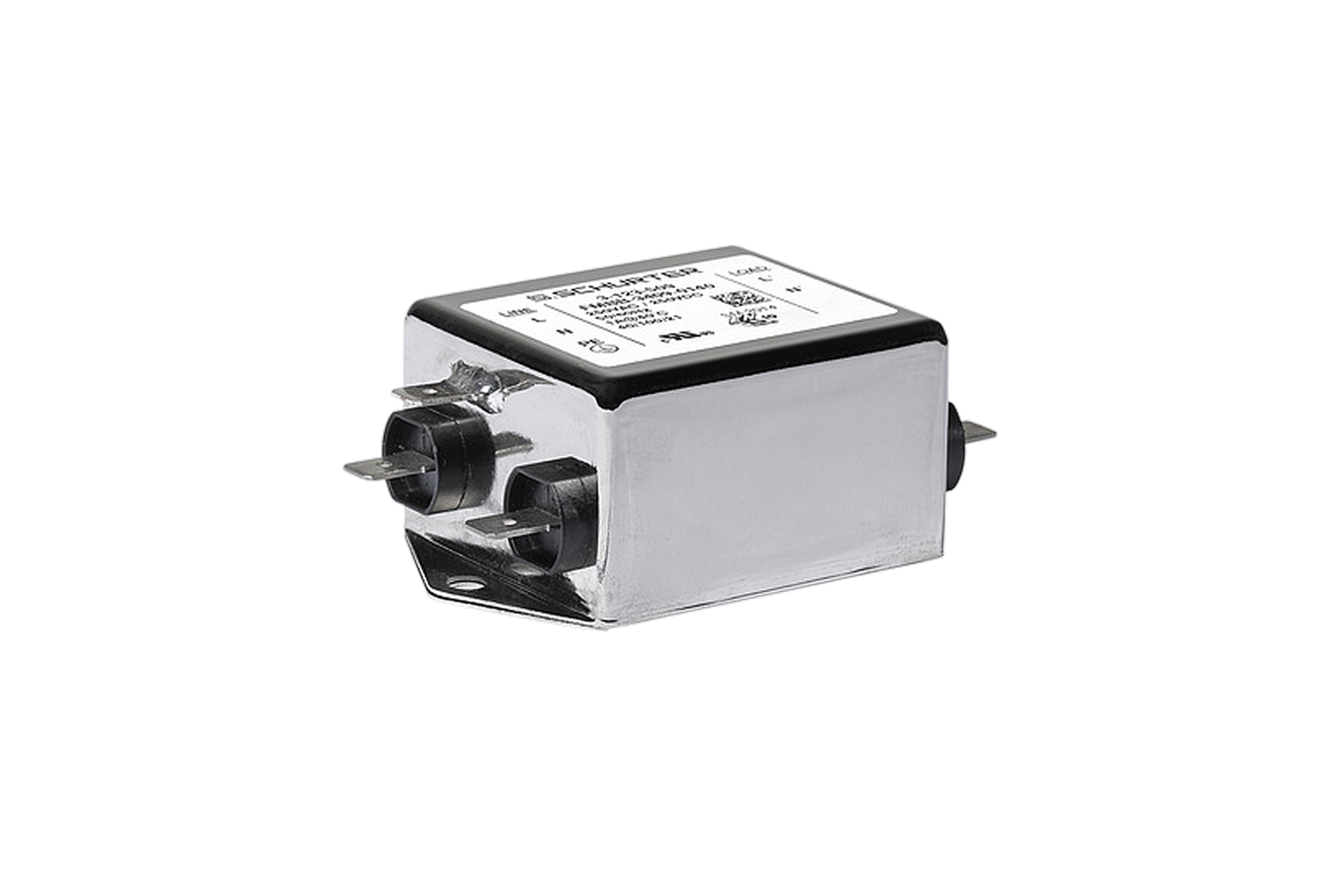

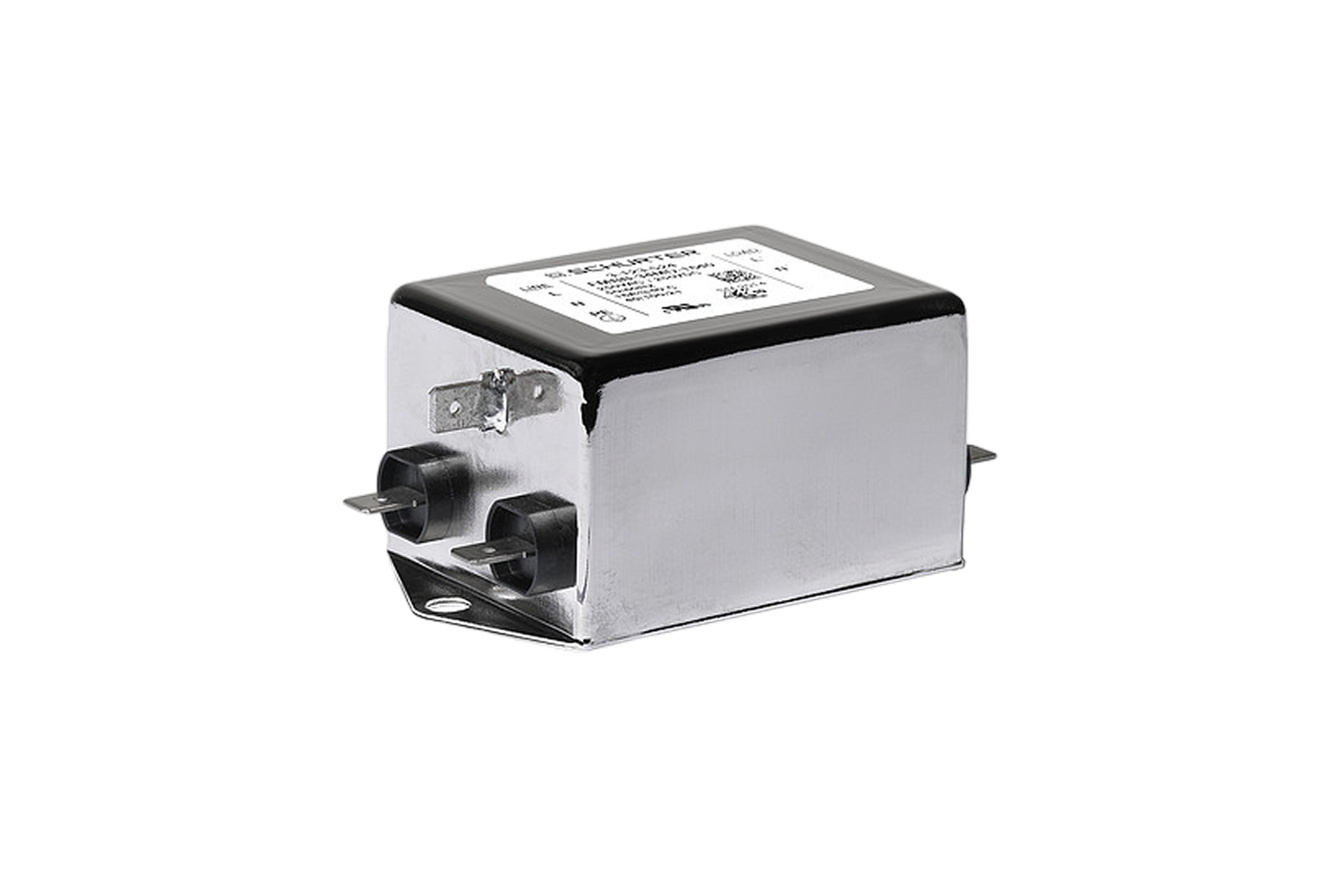

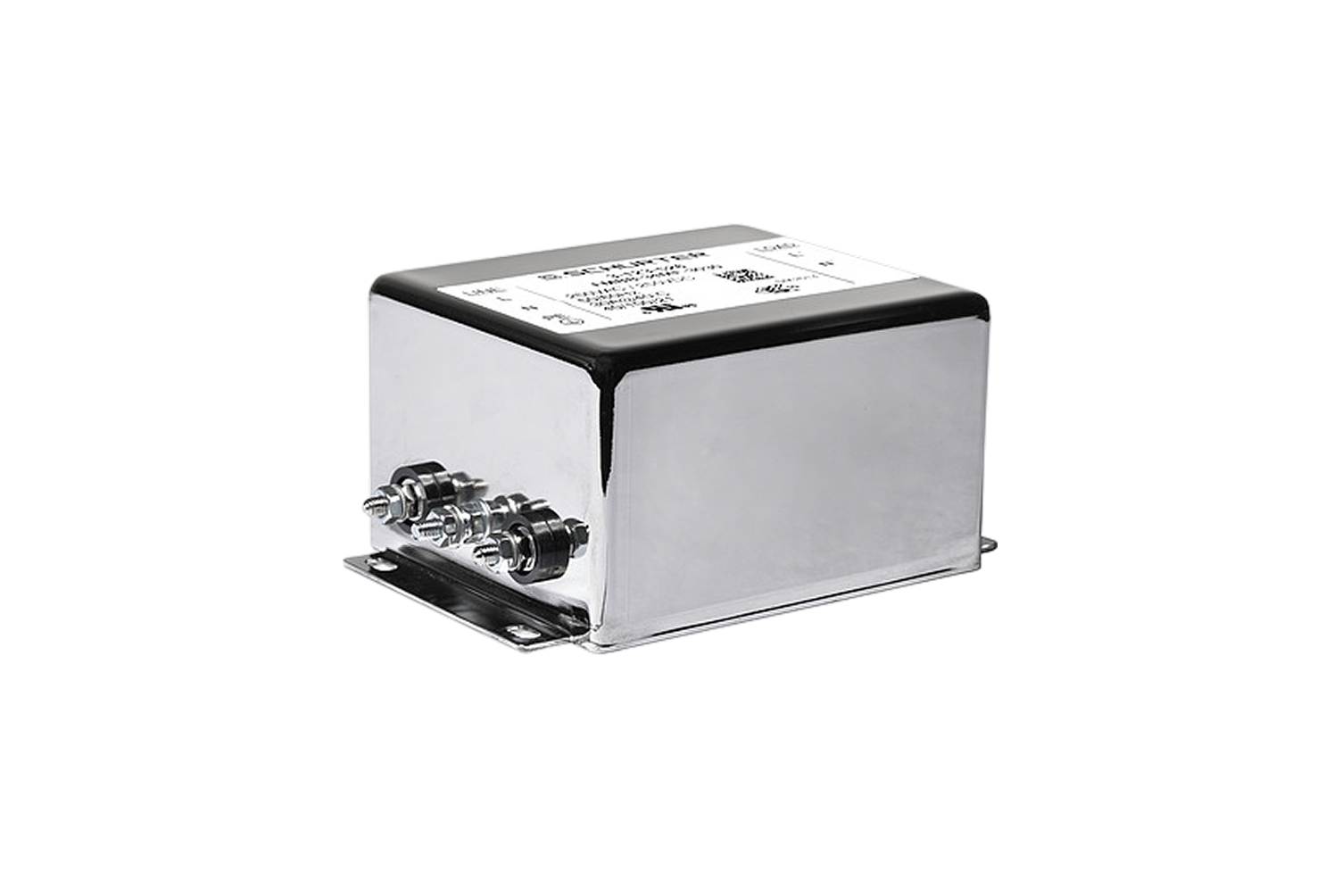

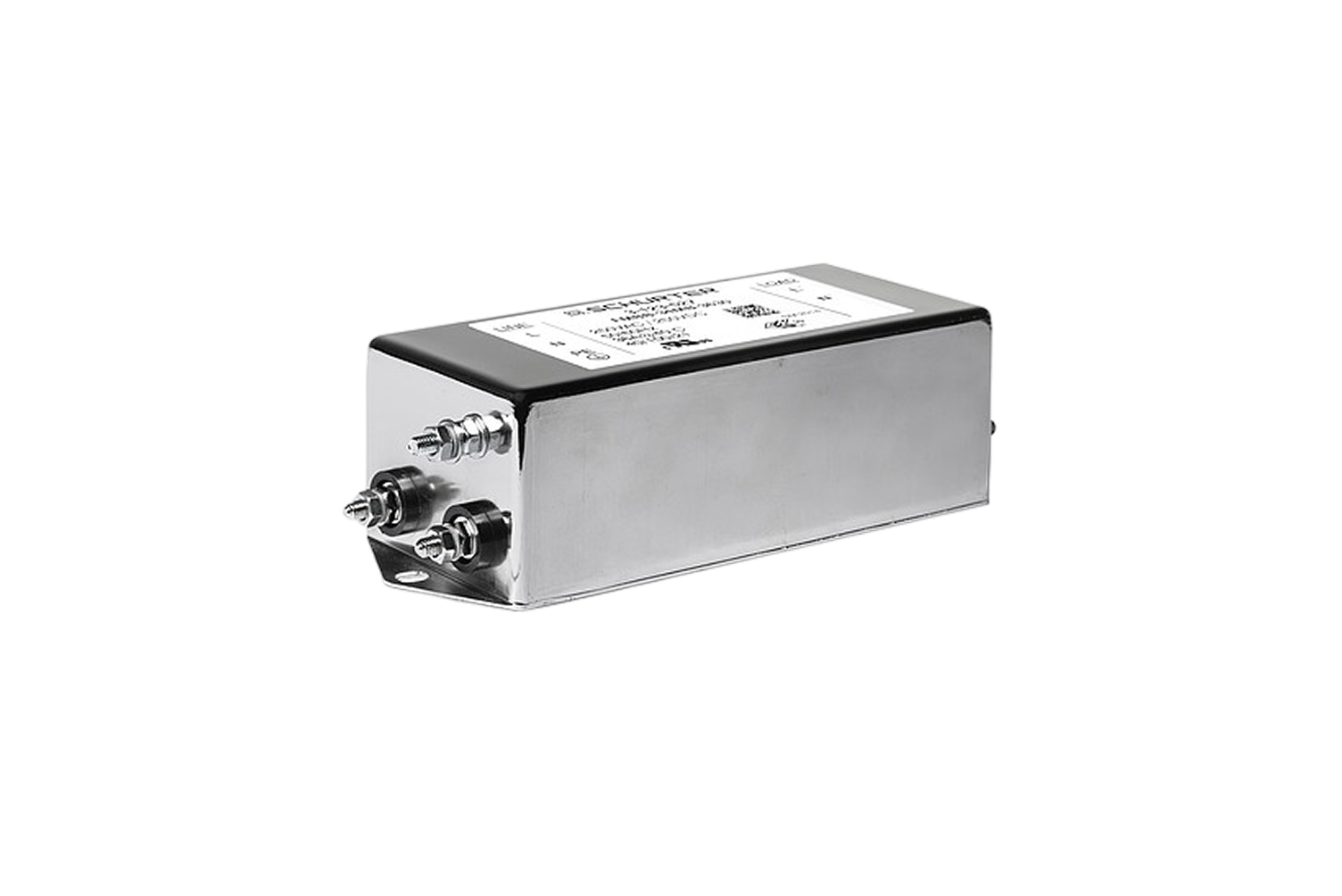

The Schurter FMBB EP is a two-stage single-phase EMC filter rated 1–36 A at 250 VAC, -40°C to 100°C, delivering excellent conducted-emission attenuation performance – EP denoting “excellent performance.” Nickel-plated steel housings span cases 09 through MF to cover the full current range. Four leakage configurations are available: standard (<6.9 mA), low leakage (<0.15 mA), medical M5 (<0.005 mA) and medical M80 (<0.073 mA), with the medical configurations supporting IEC 60601-1 (1 MOOP / 1 MOPP). The FMBB EP supersedes the FSW and FSS series.

Features: Two-stage topology; ‘EP’ designation indicates excellent attenuation performance

Nickel-plated steel housing; Quick connect 6.3×0.8 mm (≤16 A) or Bolt/nut M4 (20–36 A)

Four leakage versions: standard (<6.9 mA), low leakage (<0.15 mA), M5 (<0.005 mA), M80 (<0.073 mA)

IP20 rated

DIN Rail Kit accessory available

VDE certificate 40051449; UL file E495089

IEC/UL 62368-1 and IEC/UL 60601-1 (1 MOOP / 1 MOPP) application standards

CE, UKCA, RoHS, China RoHS, REACH compliant
Compatible Applications Suited to single-phase applications requiring excellent two-stage attenuation, including medical power equipment:: Medical power supplies and electrosurgical equipment

Industrial drives and motor starters

Switched-mode power supplies with tight emissions limits

Power conversion equipment in industrial environments

Laboratory and analytical instruments

FMBB EP Technical Specifications

Technical specifications

Technical specifications
Parameter	Value
Rated Voltage	250 VAC
Rated Current	1–36 A
Frequency	50/60 Hz
Filter Stages	2
Operating Temperature	-40°C to 100°C
Housing Material	Nickel-plated steel
Terminal (1–16 A)	Quick connect 6.3×0.8 mm
Terminal (20–36 A)	Bolt/nut M4
IP Rating	IP20
Leakage Current (Standard)	< 6.9 mA
Leakage Current (Low Leakage)	< 0.15 mA
Leakage Current (Medical M5)	< 0.005 mA
Leakage Current (Medical M80)	< 0.073 mA
VDE Certificate	40051449
UL File	E495089
Application Standards	IEC/UL 62368-1; IEC/UL 60601-1
Compliances	CE, UKCA, RoHS, China RoHS, REACH
DIN Rail Kit	Available (accessory)

FMBB EP Variants & Order Codes

Order No.	Current (A)	Type	Terminal	Housing	Pkg
3-123-509	1	Standard	QC 6.3 mm	09	15
3-123-510	3	Standard	QC 6.3 mm	09	15
3-123-511	6	Standard	QC 6.3 mm	09	15
3-123-522	10	Standard	QC 6.3 mm	MC	10
3-123-523	12	Standard	QC 6.3 mm	MC	10
3-123-524	16	Standard	QC 6.3 mm	UB	10
3-123-525	20	Standard	Bolt/nut M4	ME	5
3-123-526	30	Standard	Bolt/nut M4	MF	3
3-123-527	36	Standard	Bolt/nut M4	MB	4
3-123-537	1	Low Leakage	QC 6.3 mm	09	15
3-123-538	3	Low Leakage	QC 6.3 mm	09	15
3-123-539	6	Low Leakage	QC 6.3 mm	09	15
3-123-540	10	Low Leakage	QC 6.3 mm	MC	10
3-123-541	12	Low Leakage	QC 6.3 mm	MC	10
3-123-542	16	Low Leakage	QC 6.3 mm	UB	10
3-123-543	20	Low Leakage	Bolt/nut M4	ME	5
3-123-544	30	Low Leakage	Bolt/nut M4	MF	3
3-123-545	36	Low Leakage	Bolt/nut M4	MB	4
3-123-528	1	Medical M5	QC 6.3 mm	09	15
3-123-529	3	Medical M5	QC 6.3 mm	09	15
3-123-530	6	Medical M5	QC 6.3 mm	09	15
3-123-531	10	Medical M5	QC 6.3 mm	MC	10
3-123-532	12	Medical M5	QC 6.3 mm	MC	10
3-123-533	16	Medical M5	QC 6.3 mm	UB	10
3-123-534	20	Medical M5 *	Bolt/nut M4	ME	5
3-123-535	30	Medical M5 *	Bolt/nut M4	MF	3
3-123-536	36	Medical M5 *	Bolt/nut M4	MB	4
3-142-126	1	Medical M80	QC 6.3 mm	09	15
3-142-127	3	Medical M80	QC 6.3 mm	09	15
3-142-128	6	Medical M80	QC 6.3 mm	09	15
3-142-129	10	Medical M80	QC 6.3 mm	MC	10
3-142-130	12	Medical M80	QC 6.3 mm	MC	10
3-142-131	16	Medical M80	QC 6.3 mm	UB	10
3-142-132	20	Medical M80 *	Bolt/nut M4	ME	5
3-142-133	30	Medical M80 *	Bolt/nut M4	MF	3
3-142-134	36	Medical M80 *	Bolt/nut M4	MB	4

20 A, 30 A and 36 A medical M5 and M80 variants are suitable only for permanently connected medical equipment.

Downloads & Documentation

FMBB EP Datasheet

Download

Buy Schurter FMBB EP From the Official UK Distributor

Dalroad is the official UK distributor for Schurter. We hold reliable stock of their EMC filter range, and our team supports design engineers through component selection, system integration and supply planning for industrial power electronics, motor drive and power conversion applications. Submit an enquiry to book a call with our technical experts or request a sample.
