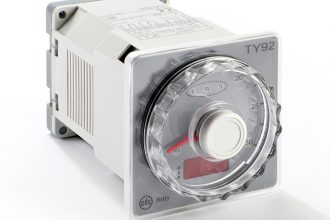

TY92 digital electronic timer with an analogic setting and a direct reading.

Document downloads

Further information

Through the mini dips on the side, it is possible to choose:
A) The relays state with knob sets on time 0
B) One of the 3 available full-scale times.
C) One from the 4 available functions (with commands Start and Reset)
D) Memory ON or OFF (memory works only during the counting).
E) End timing Buzzer: ON or OFF

Moreover, through the knob it is possible to set the exact time required. The LEDs on the front point out the relays state, the chosen time unit and the presence of the memory. The electrical wirings will be made through the use of the Undecal socket ( AZ511).

ty92

Key benefits

  • Full scale time setting: Base 3 30s - 30m - 30 h, Base 6 60s - 60m - 60h on Request, Base 12 12s - 12m - 120h on Request
