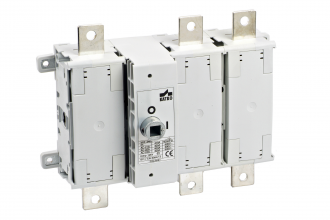

VKE 125-630A modular series load break switches, allows the drive position to be positioned in any position. Front operated the VKE is easy to install and is available in a 1, 2, 3 and a 4 pole. Tested according to IEC 60947-3 standards, VKE 125-630A load break switch, disconnects equipment from its power source for maintenance, repair and emergency stops.
| Type | AC-21 | 400 V | AC-22 | 400 V | AC-23 | AC-23 | EAN-Code | ||
| 415 V | 415 V | 400 V | 690 V | ||||||
| 690 V | 690 V | 415 V | |||||||
| Model | Ie / A | Ie / A | Ie / A | Ie / A | |||||
| 3-pole | |||||||||
| VKE 3125 | 160 A | 125 A | 125 A | 55 kW | 125 A | 90 kW | 6419410205006 | ||
| VKE 3160 | 160 A | 160 A | 125 A | 55 kW | 125 A | 90 kW | 6419410205013 | ||
| VKE 3125 NT | 160 A | 125 A | 125 A | 55 kW | 125 A | 90 kW | 6419410285848 | ||
| VKE 3160 NT | 160 A | 160 A | 125 A | 55 kW | 125 A | 90 kW | 6419410285855 | ||
| 4-pole | |||||||||
| VKE 4125 | 160 A | 125 A | 125 A | 55 kW | 125 A | 90 kW | 6419410205020 | ||
| VKE 4160 | 160 A | 160 A | 125 A | 55 kW | 125 A | 90 kW | 6419410205037 | ||
| Type | AC-21 | 400 V | AC-22 | 400 V | AC-23 | AC-23 | EAN-Code | ||
| 415 V | 415 V | 400 V | 690 V | ||||||
| 690 V | 690 V | 415 V | |||||||
| Model | Ie / A | Ie / A | Ie / A | Ie / A | |||||
| 3-pole | |||||||||
| VKE 3200 | 200 A | 200 A | 200 A | 110 kW | 125 A | 160 kW | 6419410280010 | ||
| VKE 3250 | 250 A | 250 A | 250 A | 132 kW | 125 A | 250 kW | 6419410280119 | ||
| VKE 3200 NT | 200 A | 200 A | 200 A | 110 kW | 125 A | 160 kW | 6419410285862 | ||
| VKE 3250 NT | 250 A | 250 A | 250 A | 132 kW | 125 A | 250 kW | 6419410285879 | ||
| 4-pole | |||||||||
| VKE 4200 | 160 A | 125 A | 125 A | 110 kW | 125 A | 160 kW | 6419410280027 | ||
| VKE 4250 | 160 A | 160 A | 125 A | 132 kW | 125 A | 250 kW | 6419410280126 | ||
| 6-pole | |||||||||
| VKE 6200 | 160 A | 125 A | 125 A | 110 kW | 125 A | 160 kW | 6419410280607 | ||
| VKE 6250 | 160 A | 160 A | 125 A | 132 kW | 125 A | 250 kW | 6419410280652 | ||
| Type | AC-21 | 400 V | AC-22 | 400 V | AC-23 | AC-23 | EAN-Code | ||
| 415 V | 415 V | 400 V | 690 V | ||||||
| 690 V | 690 V | 415 V | |||||||
| Model | Ie / A | Ie / A | Ie / A | Ie / A | |||||
| 3-pole | |||||||||
| VKE 3315 | 315 A | 315 A | 315 A | 160 kW | 315 A | 315 kW | 6419410285886 | ||
| VKE 3400 | 400 A | 400 A | 400 A | 200 kW | 400 A | 355 kW | 6419410280133 | ||
| VKE 3315 NT | 315 A | 315 A | 315 A | 160 kW | 315 A | 315 kW | 6419410285893 | ||
| VKE 3400 NT | 400 A | 400 A | 400 A | 200 kW | 400 A | 355 kW | 6419410285916 | ||
| 4-pole | |||||||||
| VKE 4315 | 315 A | 315 A | 315 A | 160 kW | 315 A | 315 kW | 6419410285909 | ||
| VKE 4400 | 400 A | 400 A | 400 A | 200 kW | 400 A | 355 kW | 6419410280140 | ||
| 6-pole | |||||||||
| VKE 6315 | 315 A | 315 A | 315 A | 160 kW | 315 A | 315 kW | 6419410280706 | ||
| VKE 6400 | 400 A | 400 A | 400 A | 200 kW | 400 A | 355 kW | 6419410280737 | ||
| Type | AC-21 | 400 V | AC-22 | 400 V | AC-23 | AC-23 | EAN-Code | ||
| 415 V | 415 V | 400 V | 690 V | ||||||
| 690 V | 690 V | 415 V | |||||||
| Model | Ie / A | Ie / A | Ie / A | Ie / A | |||||
| 3-pole | |||||||||
| VKE 3630 | 630 A | 630 A | 630 A | 355 kW | 500 A | 500 kW | 6419410284858 | ||
| VKE 3630 NT | 630 A | 630 A | 630 A | 355 kW | 500 A | 500 kW | 6419410284865 | ||
| 4-pole | |||||||||
| VKE 4630 | 630 A | 630 A | 630 A | 355 kW | 500 A | 500 kW | 6419410280164 | ||
| 6-pole | |||||||||
| VKE 6630 | 630 A | 630 A | 630 A | 355 kW | 500 A | 500 kW | 6419410280751 | ||
The modular structure enables the drive mechanism position to be varied
Front operated
Available as 1-,2-.3- and 4-pole
Available with terminal covers (LS)
Easy to install auxiliary contacts
125-160 A: Includes shaft L=220 AD12/T and LK12 handle
200-630 A: Includes shaft LVK=228 and LK14 handle
Tested according to IEC 60947-3
