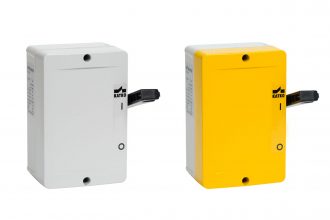

KATKO KE side operated IP66 rated aluminium switches are available in 16-63A. The KE side operated aluminium enclosed switches are tested according to IEC 60947-3, EMC shielding with EMC glands are available as an option.
| Type | AC-21 | 400 V | AC-22 | 400 V | AC-23 | AC-23 | EAN-Code | Enclosure | ||||
| 415 V | 415 V | 400 V | 690 V | |||||||||
| 690 V | 690 V | 415 V | ||||||||||
| Grey/black | Yellow/red | Ie / A | Ie / A | Ie / A | Ie / A | Grey/Black | Yellow/Red | |||||
| 3-pole | ||||||||||||
| KE 316A | KE 316A Y/R | 16 A | 16 A | 16A | 7.5 kW | 16A | 11 kW | 6419410304488 | 6419410304600 | A2 | ||
| KE 325A | KE 325A Y/R | 25 A | 25 A | 25A | 11 kW | 25A | 22 kW | 6419410304495 | 6419410304617 | A2 | ||
| KE 340A | KE 340A Y/R | 40 A | 40 A | 40A | 22 kW | 25A | 22 kW | 6419410304501 | 6419410304624 | A2 | ||
| 4-pole | ||||||||||||
| KE 416A | KE 416A Y/R | 16 A | 16 A | 16A | 7.5 kW | 16A | 11 kW | 6419410304518 | 6419410304631 | A2 | ||
| KE 425A | KE 425A Y/R | 25 A | 25 A | 25A | 11 kW | 25A | 22 kW | 6419410304525 | 6419410304648 | A2 | ||
| KE 440A | KE 440A Y/R | 40 A | 40 A | 40A | 22 kW | 25A | 22 kW | 6419410304532 | 6419410304655 | A2 | ||
Available in grey/black and yellow/red
Good resistance against UV and many chemicals
Withstands high impact and has wide operating temperature
Fully rated Load Break Switch breaking capacity of 8 x AC23 rating
Cable entries: 2 x M25 as standard on the top and bottom
Large cable terminals 1.5 - 16 mm2
Mounting holes: 213.0 x 144.0
