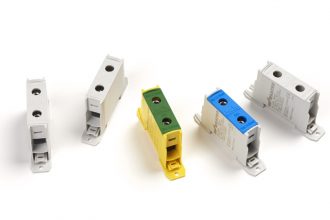

Katko terminal blocks are available in grey, blue (N) and yellow/green (PE). Certified according to IEC 61238-1 Class A the terminal blocks have been made of environmentally friendly material.
| Type | Un (V) | In (Al) (A) | In (Cu) (A) | Al/Cu mm2 | Torque Al/Cu (Nm) | No of conductors | Key size | Mounting | EAN code | Weight kg |
| KC 1×16 | 800 | – | 63 | 1.5-16* | 1.8 | 2 | PZ2 | DIN | 6419410357200 | 0.021 |
| KC 1x16N | 6419410357217 | |||||||||
| KC 1x16PE | 6419410357224 | |||||||||
| KC 2×16 | 800 | – | 125 | 1.5-16* | 1.8 | 4 | PZ2 | DIN | 6419410357507 | 0.047 |
| KC 2x16N | 6419410357514 | |||||||||
| KC 2x16PE | 6419410357521 | |||||||||
| KC 1×35 | 800 | – | 135 | 2.5-35* | 2.5 | 2 | PZ2 | DIN | 6419410357231 | 0.03 |
| KC 1x35N | 6419410357248 | |||||||||
| KC 1x35PE | 6419410357255 | |||||||||
| KC 2×35 | 800 | – | 270 | 2.5-35* | 2.5 | 4 | PZ2 | DIN | 6419410357538 | 0.069 |
| KC 2x35N | 6419410357545 | |||||||||
| KC 2x35PE | 6419410357552 | |||||||||
| KL1x50 | 1000 | 160 | 160 | 2.5 – 50 | 5 (2.5 – 16 mm2) | 2 | Hex 5 | Screw / DIN | 6419410378250 | 0.06 |
| KL1x50N | 6419410378267 | |||||||||
| KL1x50PE | 10 (25 – 50 mm2) | 6419410378274 | ||||||||
| KL2x50 | 1000 | 200 | 320 | 2.5 – 50 | 5 (2.5 – 16 mm2) | 4 | Hex 5 | Screw / DIN | 6419410378281 | 0.104 |
| KL2x50N | 6419410378298 | |||||||||
| KL2x50PE | 10 (25 – 50 mm2) | 6419410378304 | ||||||||
| KL1x95 | 1000 | 200 | 245 | 16 – 95 | 12 (16 – 50 mm2) | 2 | Hex 6 | Screw / DIN | 6419410378311 | 0.096 |
| KL1x95N | 6419410378328 | |||||||||
| KL1x95PE | 22 (70 – 95 mm2) | 6419410378335 | ||||||||
| KL2x95 | 1000 | 400 | 490 | 16 – 95 | 12 (16 – 50 mm2) | 4 | Hex 6 | Screw / DIN | 6419410378342 | 0.169 |
| KL2x95N | 6419410378359 | |||||||||
| KL2x95PE | 22 (70 – 95 mm2) | 6419410378366 | ||||||||
| KL1x150 | 1000 | 250 | 320 | 25 – 150 | 12 (25 – 50 mm2) | 2 | Hex 6 | Screw / DIN | 6419410378373 | 0.181 |
| KL1x150N | 22 (70 – 95 mm2) | 6419410378380 | ||||||||
| KL1x150PE | 38 (120 – 150 mm2) | 6419410378397 | ||||||||
| KL2x150 | 1000 | 500 | 640 | 25 – 150 | 12 (25 – 50 mm2) | 4 | Hex 6 | Screw / DIN | 6419410378403 | 0.317 |
| KL2x150N | 22 (70 – 95 mm2) | 6419410378410 | ||||||||
| KL2x150PE | 38 (120 – 150 mm2) | 6419410378427 | ||||||||
| KL1x240 | 1000 | 315 | 425 | 35 – 240 | 25 (35 – 120 mm2) | 2 | Hex 8 | Screw / DIN | 6419410378434 | 0.293 |
| KL1x240N | 6419410378441 | |||||||||
| KL1x240PE | 55 (150 – 240 mm2) | 6419410378458 | ||||||||
| KL2x240 | 1000 | 630 | 850 | 35 – 240 | 25 (35 – 120 mm2) | 4 | Hex 8 | Screw / DIN | 6419410378465 | 0.522 |
| KL2x240N | 6419410378472 | |||||||||
| KL2x240PE | 55 (150 – 240 mm2) | 6419410378489 |
Suitable for Al/Cu cables: 1.5 - 240 mm2
Touchproof, IP20
Housing and cover in polyamide
Terminal material tin-coated, greased aluminium
KC-terminals 16 - 35 mm2 for DIN-rail mounting
KL-terminals 50 - 240 mm2 for DIN-rail or base mounting
