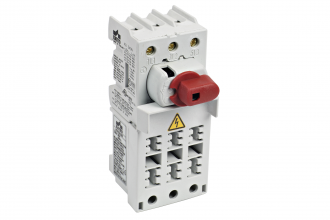

KKV Switch Fuses 16-32A

KKV series switch fuses ranges from 16A to 32A. Consisting of a KU-switch and a KV 10 x 38 fuse holder the Katko KKV series is available as 1, 2, 3 and 4 pole. Tested according to IEC 60269. Certificates - CE, RINA, RoHS, GostR and EAC.

Drawing downloads

Further information

Type AC-21 400 V AC-22 400 V AC-23 AC-23 EAN-Code
415 V 415 V 400 V 690 V
690 V 690 V 415 V
Model Ie / A Ie / A Ie / A Ie / A
3-pole
KKV 316 16 A 16 A 16 A 7.5 kW 16 A 11 kW 6419410212608
KKV 325 25 A 25 A 25 A 11 kW 25 A 22 kW 6419410212707
KKV 332 32 A 32 A 32 A 15 kW 32 A 30 kW 6419410212806
4-pole
KKV 416 16 A 16 A 16 A 7.5 kW 16 A 11 kW 6419410212653
KKV 425 25 A 25 A 25 A 11 kW 25 A 22 kW 6419410212752
KKV 432 32 A 32 A 32 A 15 kW 32 A 30 kW 6419410212851
KATKO Switch Fuses

Key benefits

  • Available as 1-, 2-, 3- and 4-pole

  • Compatible with handles LK10 and LK11

  • Shafts L=100/200/300 AD11 and L=100/200/300 AD11/VT
