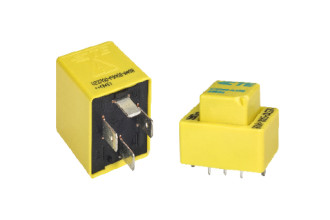

The Mini K HV supports the connection and disconnection of the traction battery in switching assemblies for hybrid and battery electric vehicles. Even under fault conditions, the Mini K HV reliably disconnects the precharge circuit from the traction battery for excellent safety. Our high voltage precharge relays, Mini K HV, operates safely with two arc extinguishing magnets. Its small package and PCB mount or plug-in terminals make it an easy choice for voltage levels up to 450VDC and precharge currents and limiting break currents up to 20 Amps.
Mini K HV Relay – an innovative contact design enables switching loads at a system voltage of up to 450V. The Mini K HV supports the connection and disconnection of the traction battery in switching assemblies for hybrid and battery electric vehicles.
| Product code | V23700-C0001-A408 | V23700-F0002-A408 |
| Terminal/Encl. | PCB, sealed S | Plug-in, QC |
| Design | Standard | Standard |
| Coil | without parallel resistor | with parallel resistor |
| Contact type | Standard | Standard |
| Contact mat. | Silver based | Silver based |
| Arrangement | 1 form X (NO DM) | 1 form X (NO DM) |
| Part number | 2-1904058-5 | 2-1904058-7 |
Safe-magnetic arc suppression
Prevents contact welds
Form X (NO DM) contact arrangement
Suitable for voltage level up to 450VDC
Pre-charge current up to 20A
Limiting break currents up to 20A
Small package size – low profile
Lightweight
Available with PCB mount and plug-in terminals
